Key Interlock Control

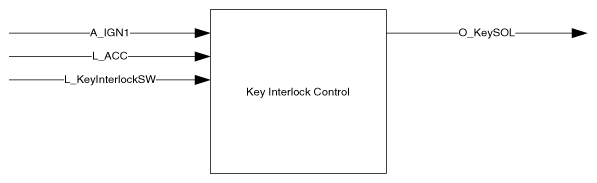

Fig 1: Key Interlock Control Communication Diagram
G10368875Courtesy of HYUNDAI MOTOR AMERICA
Function Characteristics Name
Signal Label Spec. Designation
Input Logic L_ACC Accessory Signal
L_KeyInterlockSW Key Interlock Switch Input
Analog A_IGN1 Ignition 1 Signal
Output Logic O_KeySOL Key Interlock Solenoid Output
