Trunk Control

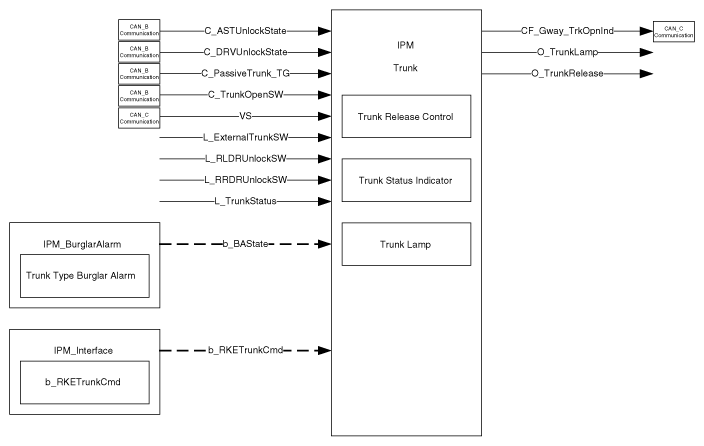

This IPM Trunk describes the following functions:
- Trunk Release Control Function
- Trunk Status Indicator Function
- Trunk Lamp Function
| Function | Characteristics | Name | |
|---|---|---|---|
| Signal Label | Spec. Designation | ||
| Input | Logic | L_ExternalTrunkSW | External Trunk Open Switch |
| L_RLDRUnlockSW | Rear Left Door Unlock Switch | ||
| L_RRDRUnlockSW | Rear Right Door Unlock Switch | ||
| L_TrunkStatus | Trunk Switch Status | ||
| CAN_B Communication | C_ASTUnlockState | Assist Door Unlock Switch | |
| C_DRVUnlockState | Driver Door Unlock Switch | ||
| C_PassiveTrunk_TG | Trunk open command by SMK | ||
| C_TrunkOpenSW | Trunk Open Switch from DDM | ||
| CAN_C Communication | VS | Vehicle Speed Signal | |
| Internal | b_BAState | Burglar Alarm State is in ARM type state | |
| b_RKETrunkCmd | RKE Trunk Command | ||
| Output | Logic | O_TrunkLamp | Trunk Lamp Output |
| O_TrunkRelease | Trunk Release Output | ||
| CAN_C Communication | CF_Gway_TrkOpnInd | Trunk opening Status | |
