ESCL Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "ESCL STATUS INFO".

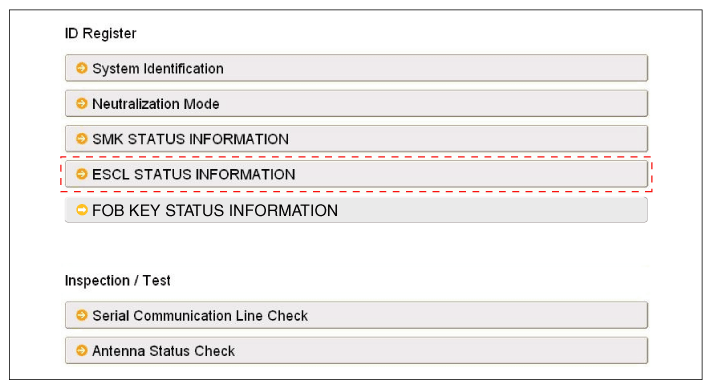

    Fig 1: Selecting ESCL Status Information Screen
    G10368812Courtesy of HYUNDAI MOTOR AMERICA

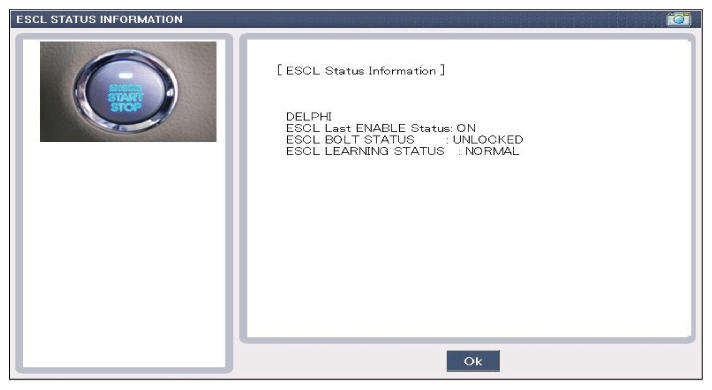

    Fig 2: Display - ESCL Status Information Screen
    G10368813Courtesy of HYUNDAI MOTOR AMERICA
