Hyundai
>>
2016
>>
Azera Base
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System
>>
Underdrive Brake Control Solenoid Valve (UDB_VFS)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

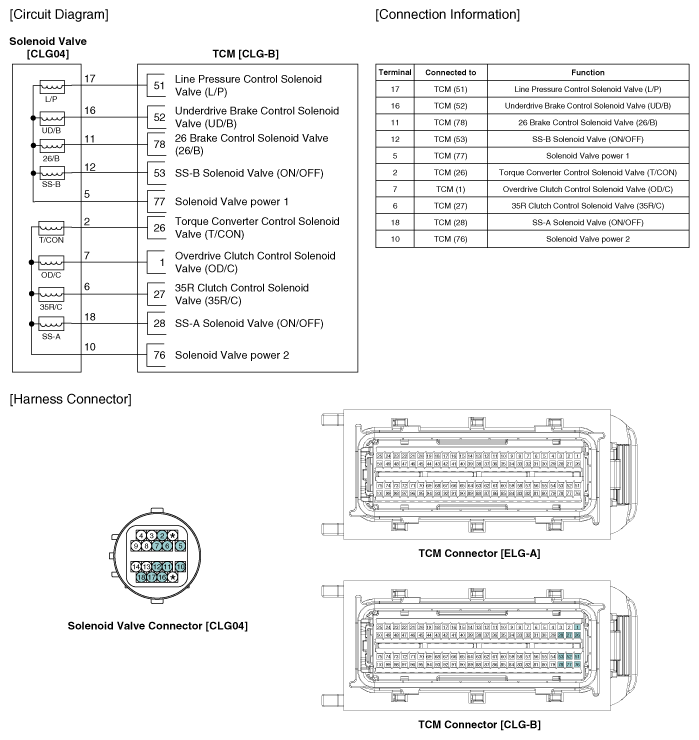

Fig 1: Solenoid Valve - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
