Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis (3 Of 3)
>>
DTC P0620: Alternator Control Circuit
>>
General Information
>>
Diagnostic Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Circuit Diagram

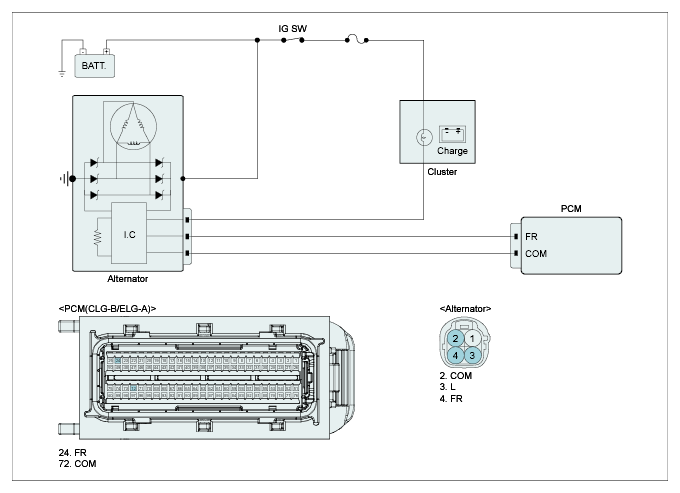

Fig 1: Alternator - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
