Circuit Diagram: (M/T)

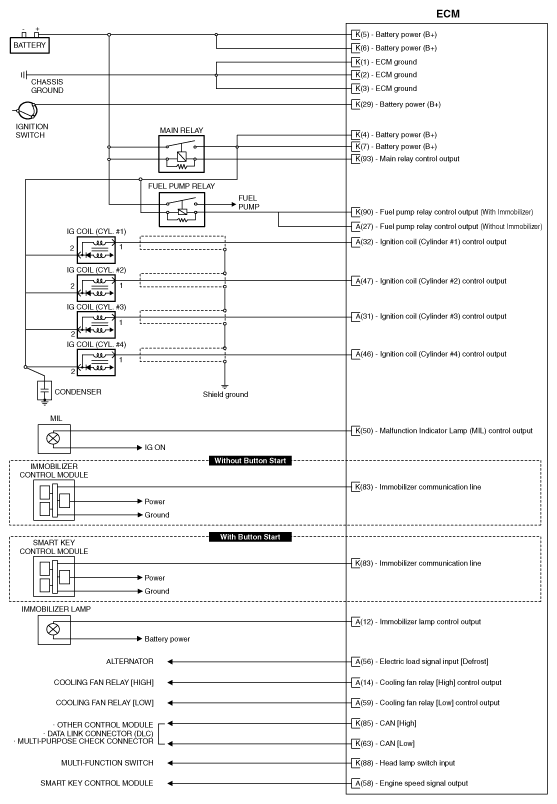

Fig 1: ECM Circuit Diagram (M/T) (1 Of 4)
G10749835Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: ECM Circuit Diagram (M/T) (2 Of 4)
G10749836Courtesy of HYUNDAI MOTOR AMERICA

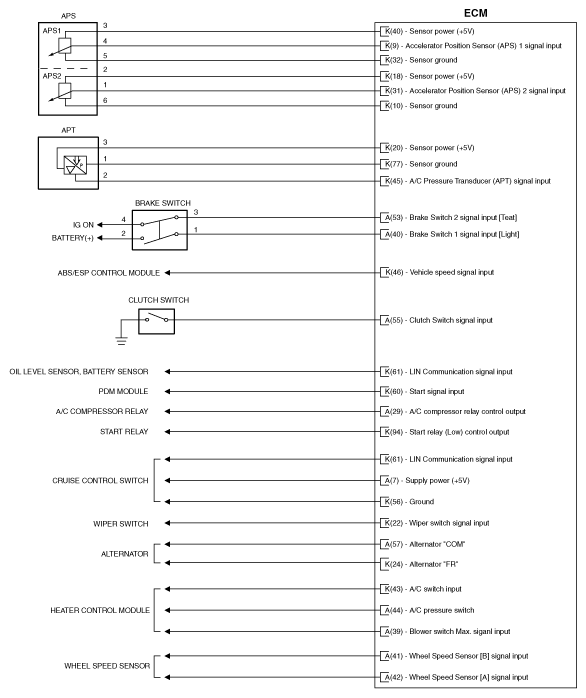

Fig 3: ECM Circuit Diagram (M/T) (3 Of 4)
G10749837Courtesy of HYUNDAI MOTOR AMERICA

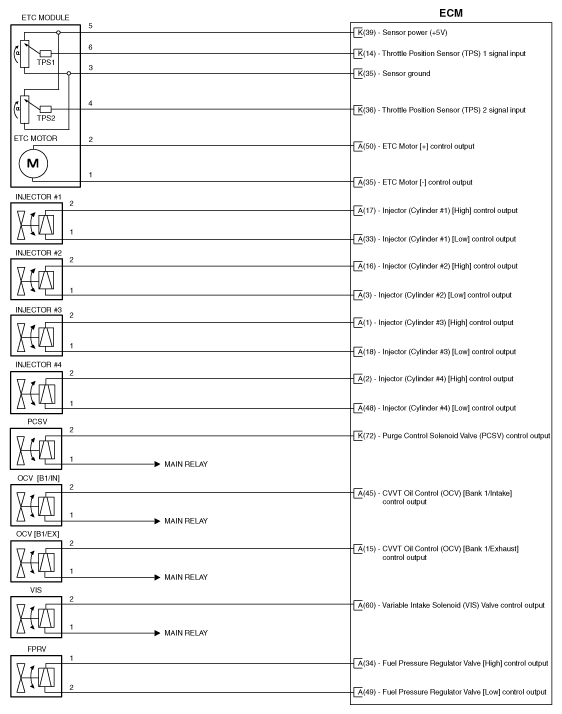

Fig 4: ECM Circuit Diagram (M/T) (4 Of 4)
G10749838Courtesy of HYUNDAI MOTOR AMERICA
