Components and Components Location: Components

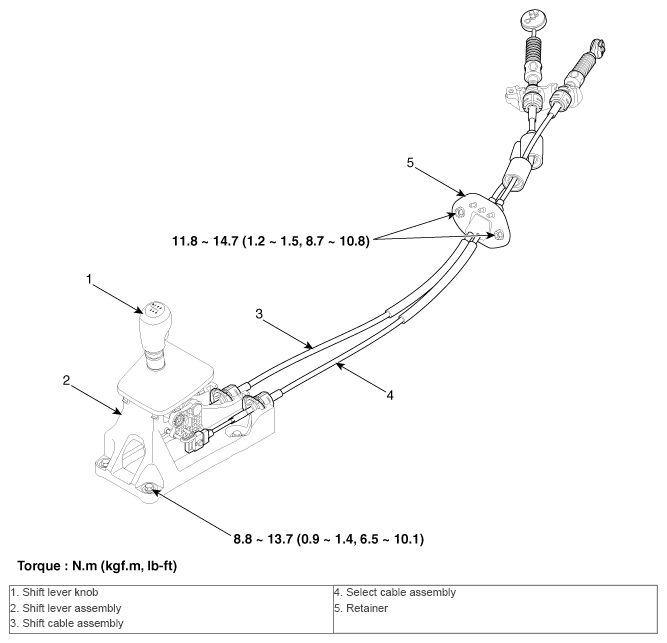

Fig 1: Control Cable Related Components With Torque Specification
G10750118Courtesy of HYUNDAI MOTOR AMERICA
