Component Location

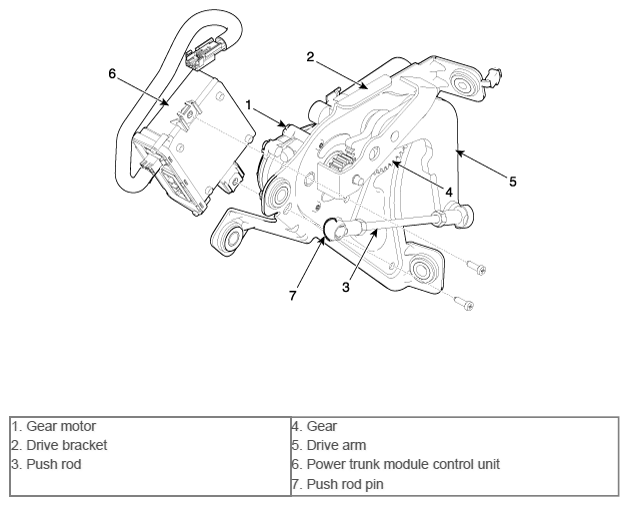

Fig 1: Power Trunk Module Drive Unit Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
