Components and Components Location: Components

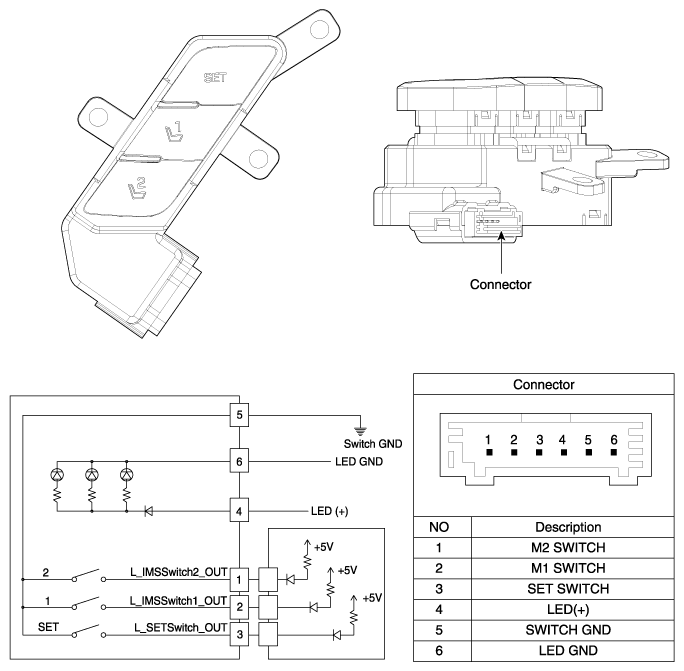

Fig 1: Memory Power Seat Switch And Terminals
G10454252Courtesy of HYUNDAI MOTOR AMERICA
