Assist Power Window Switch

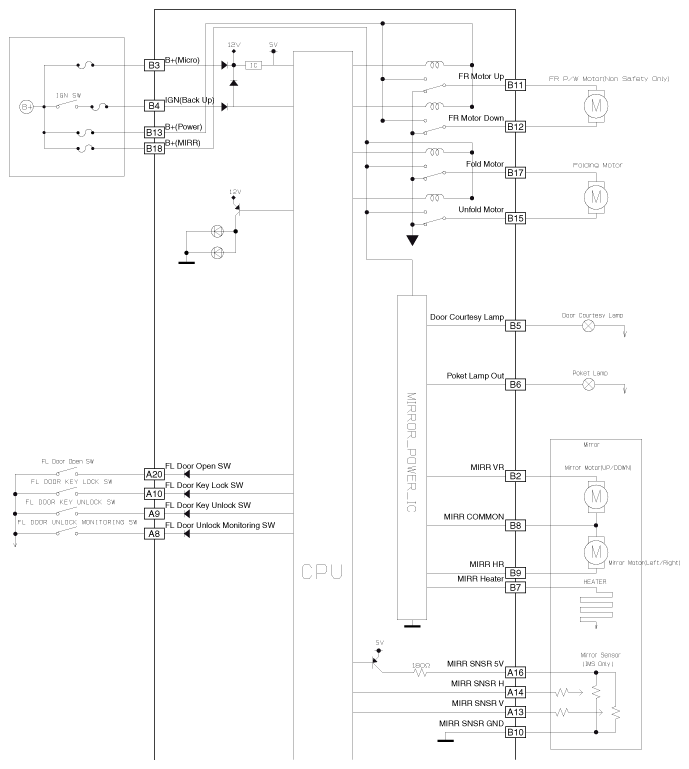

Fig 1: Assist Power Window Switch Circuit Diagram (1 Of 2)
G10576922Courtesy of HYUNDAI MOTOR AMERICA

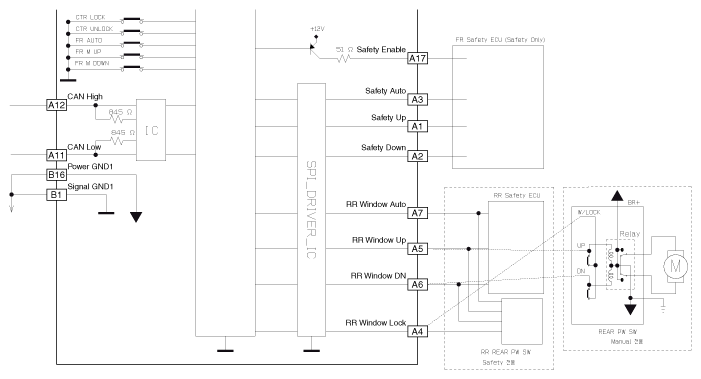

Fig 2: Assist Power Window Switch Circuit Diagram (2 Of 2)
G10576923Courtesy of HYUNDAI MOTOR AMERICA
