Assist Power Window Switch

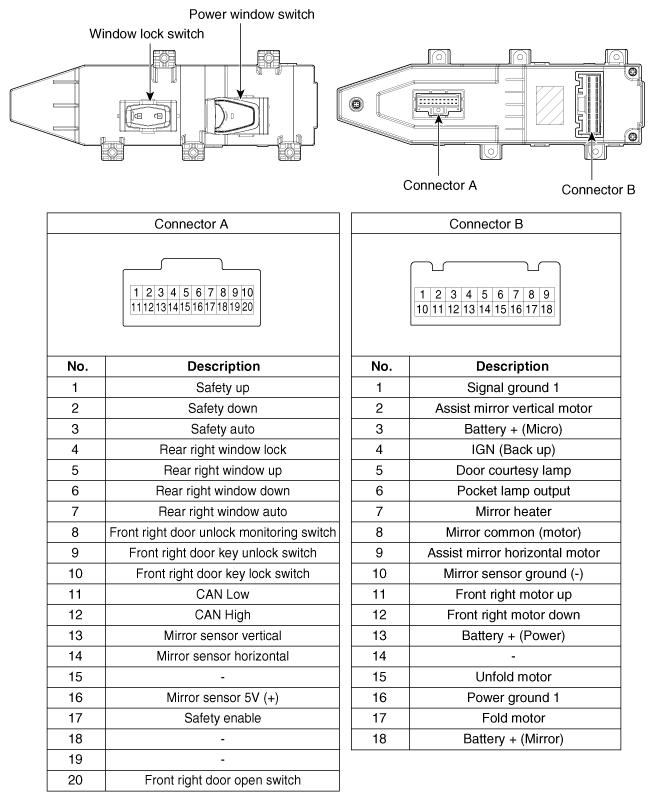

Fig 1: Assist Power Window Switch Components
Courtesy of HYUNDAI MOTOR AMERICA
