Circuit Diagram

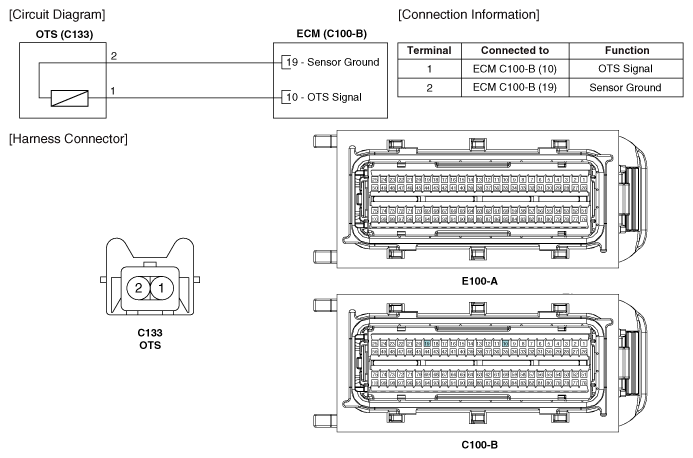

Fig 1: CVVT Oil Temperature Sensor - OTS - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
