Circuit Diagram

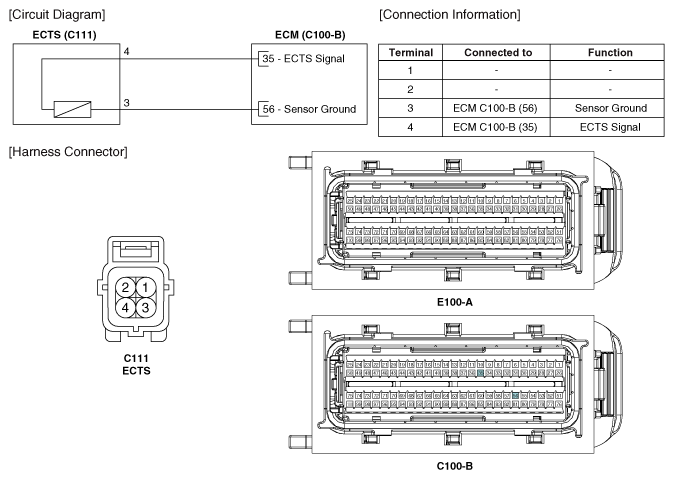

Fig 1: Engine Coolant Temperature Sensor - ECTS - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
