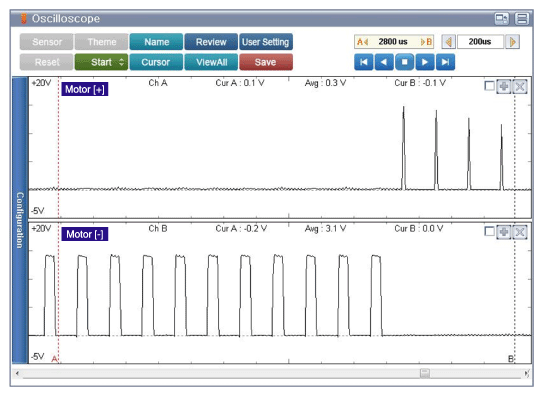

Fig 1: Display - E-CVVT Troubleshooting Signal Waveform Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

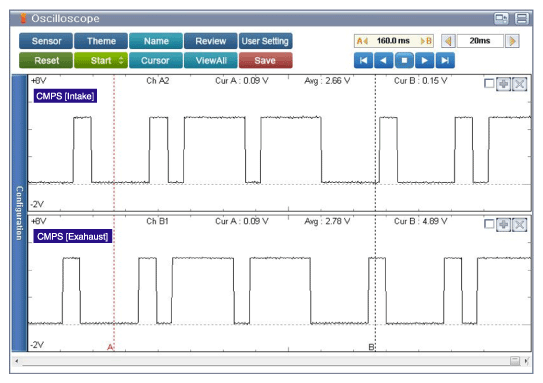

Fig 2: Display - E-CVVT Troubleshooting Signal Waveform Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
There is no separate sensor inside E-CVVT. Exhaust side 4-flank type target wheel is applied in order to compare CKPS and CMPS and calculate the valve timing.
