AVN (A/V & Navigation) Head Unit Connector
WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

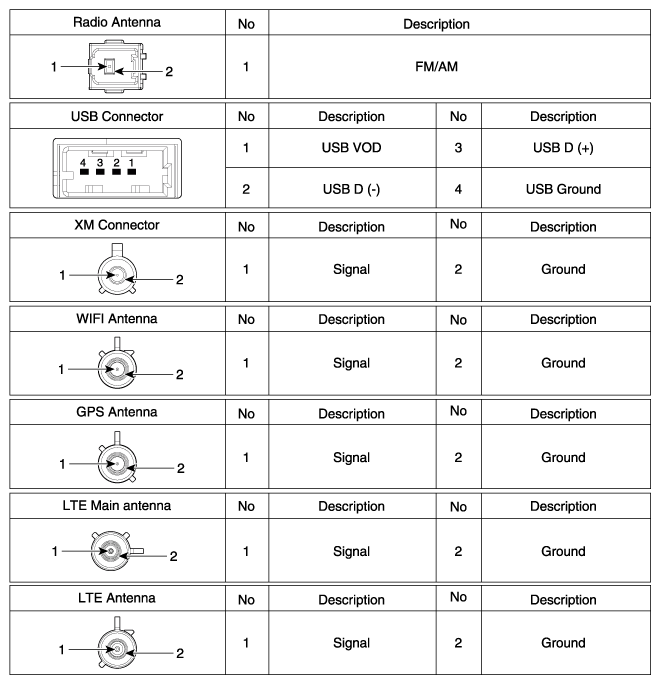

CONNECTOR PIN INFORMATION
| No | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | - | MM CAN (+) | Chassis CAN (-) |
| 2 | - | - | Chassis CAN (+) |
| 3 | - | Parking | - |
| 4 | - | Steering wheel remocon | - |
| 5 | M GND | - | - |
| 6 | SPDIF (+) | MTS Key | M GND |
| 7 | - | - | Camera C |
| 8 | Illumination (+) | AUX right input | Video GND |
| 9 | - | AUX Ground | - |
| 10 | - | MIC (+) | - |
| 11 | - | Battery (+) | Body CAN (+) |
| 12 | - | Battery (+) | Body CAN (-) |
| 13 | - | MM CAN (-) | PGS/Rear camera detect |
| 14 | IGN 1 | Auto light | AVM Detect |
| 15 | SPDIF (-) | P position | - |
| 16 | - | Speed | Navigation voice (-) |
| 17 | Illumination (-) | M_GND | Navigation voice (+) |
| 18 | Antenna remocon power | ACC | - |
| 19 | - | - | |
| 20 | AUX Detect | - | |
| 21 | AUX Left input | M GND | |
| 22 | MIC (-) | V GND | |
| 23 | M GND | Camera video input | |
| 24 | M GND | Camera power |
