Components Location

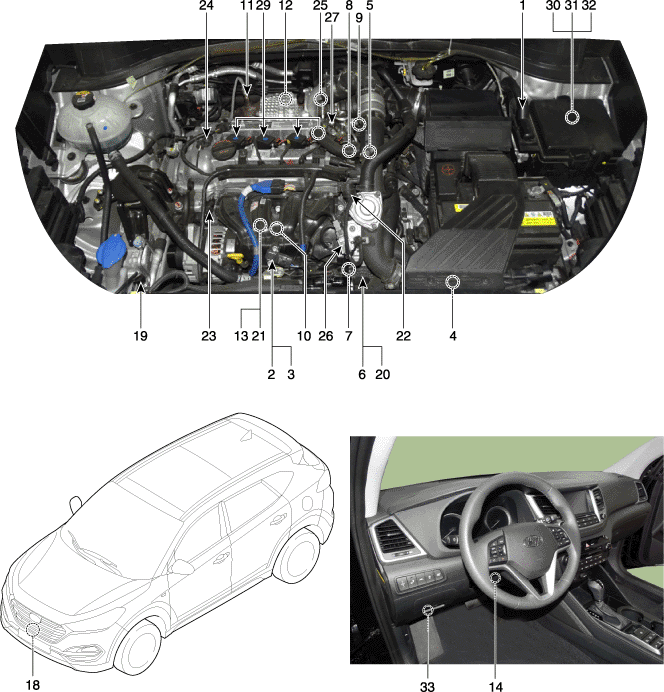

Fig 1: A/C System Components Location (1 Of 6)

G11675641

Courtesy of HYUNDAI MOTOR AMERICA

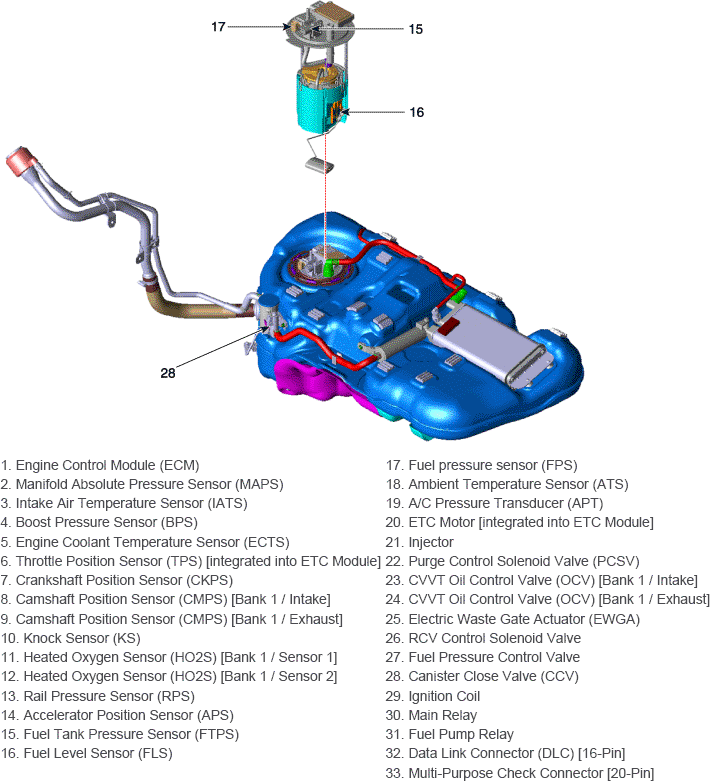

Fig 2: A/C System Components Location (2 Of 6)

G11675642

Courtesy of HYUNDAI MOTOR AMERICA

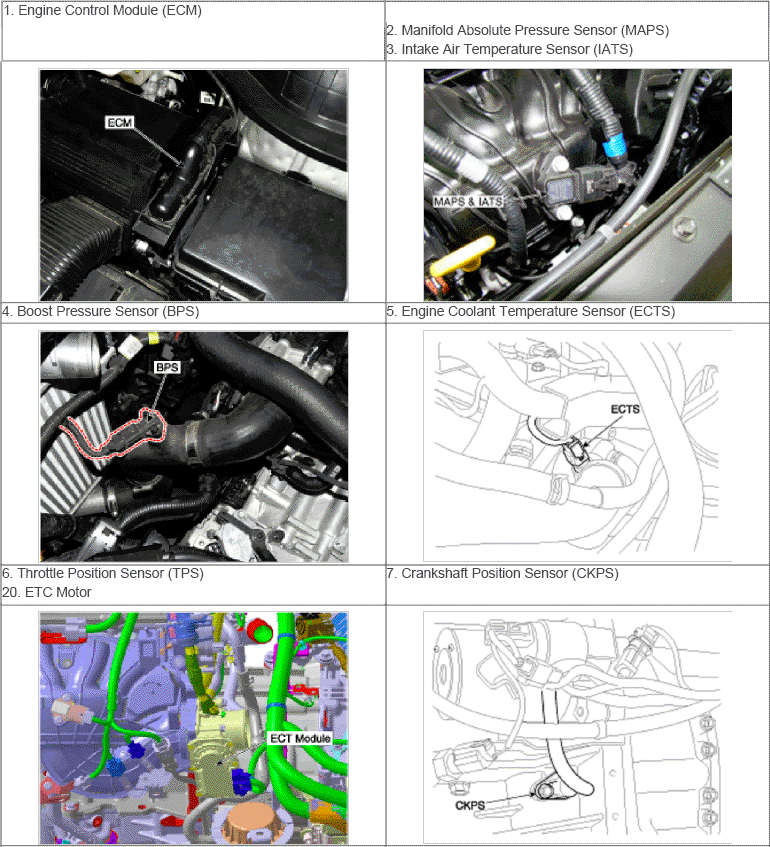

Fig 3: A/C System Components Location (3 Of 6)

G11675643

Courtesy of HYUNDAI MOTOR AMERICA

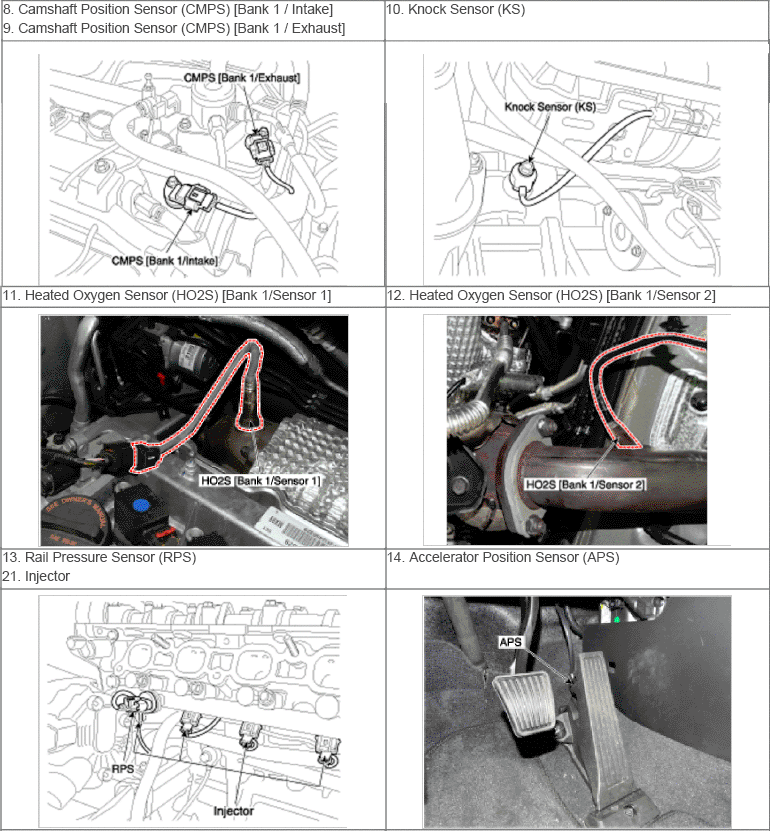

Fig 4: A/C System Components Location (4 Of 6)

G11675644

Courtesy of HYUNDAI MOTOR AMERICA

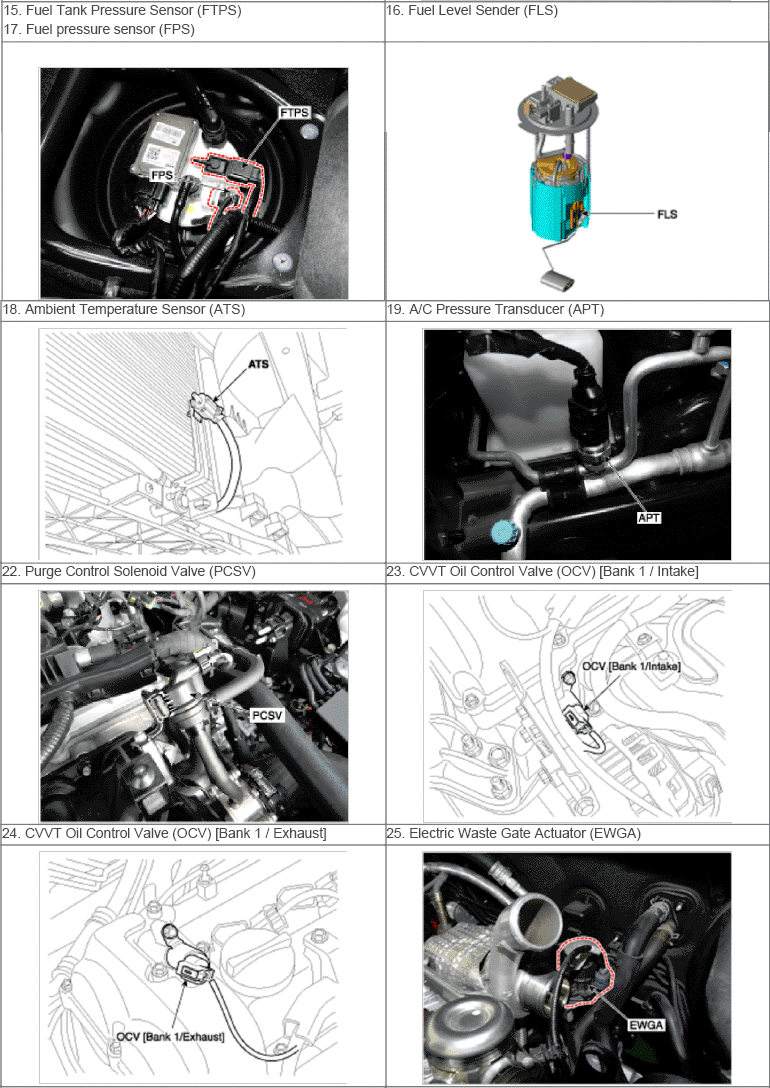

Fig 5: A/C System Components Location (5 Of 6)

G11675645

Courtesy of HYUNDAI MOTOR AMERICA

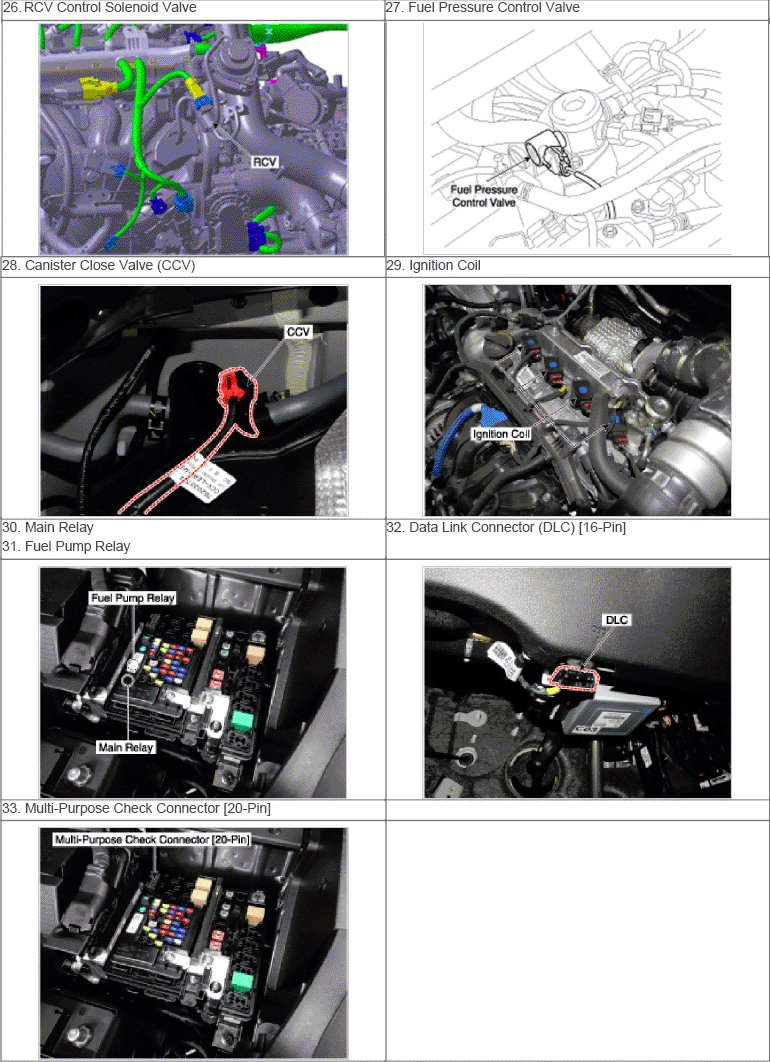

Fig 6: A/C System Components Location (6 Of 6)

G11675646

Courtesy of HYUNDAI MOTOR AMERICA
