Components Location

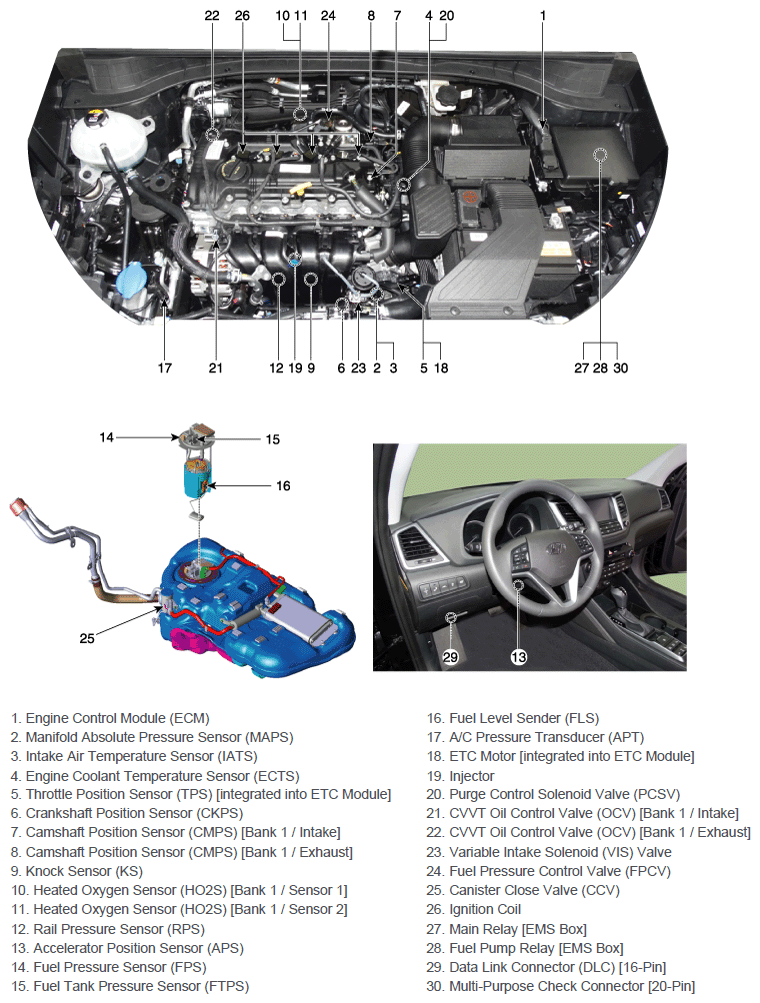

Fig 1: Engine Control System Components Location
G11643623Courtesy of HYUNDAI MOTOR AMERICA

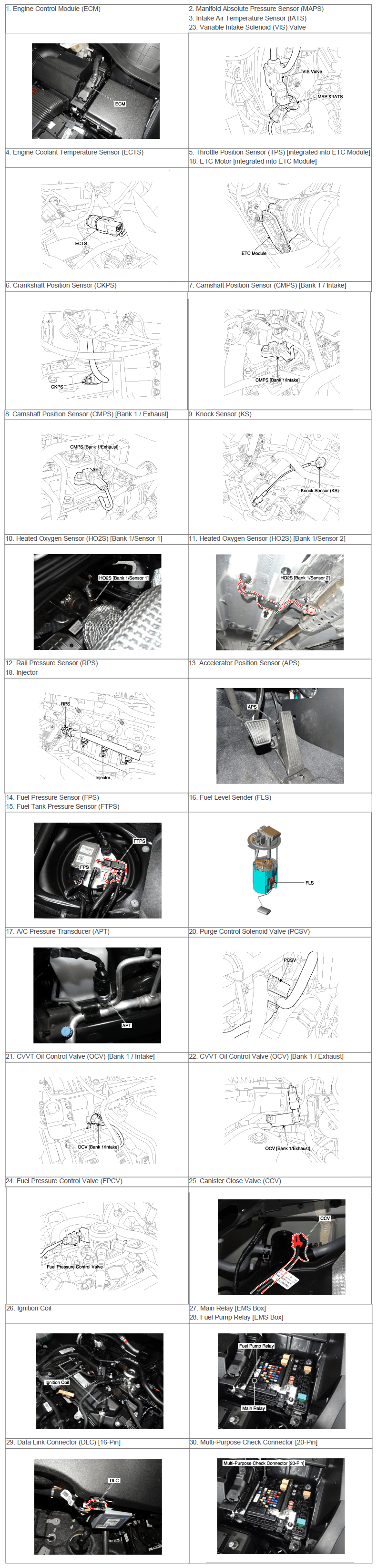

Fig 2: Parts Of Engine Control System Components Location
G11643624Courtesy of HYUNDAI MOTOR AMERICA
