Components and Components Location: Components

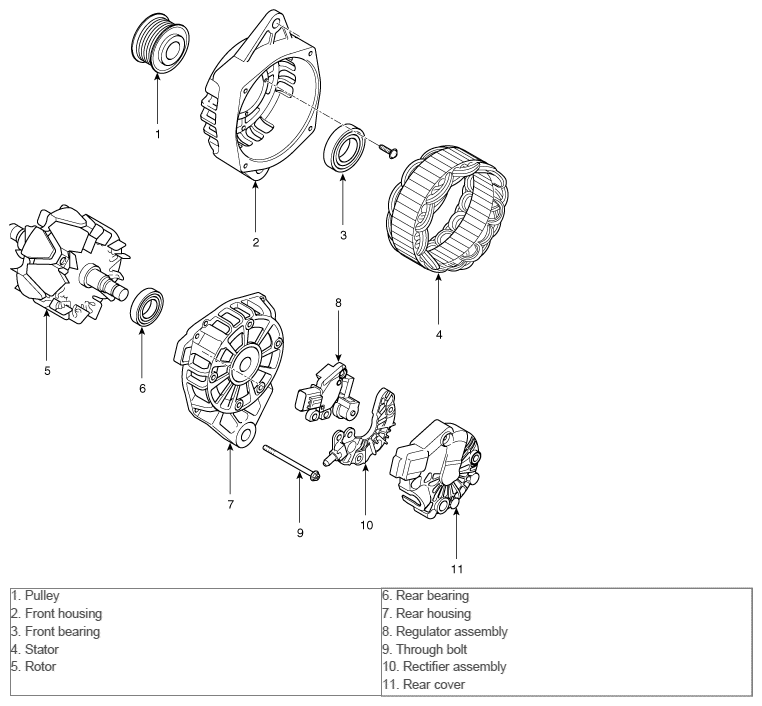

Fig 1: Alternator Replacement Components
G10607813Courtesy of HYUNDAI MOTOR AMERICA
