Components Location

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

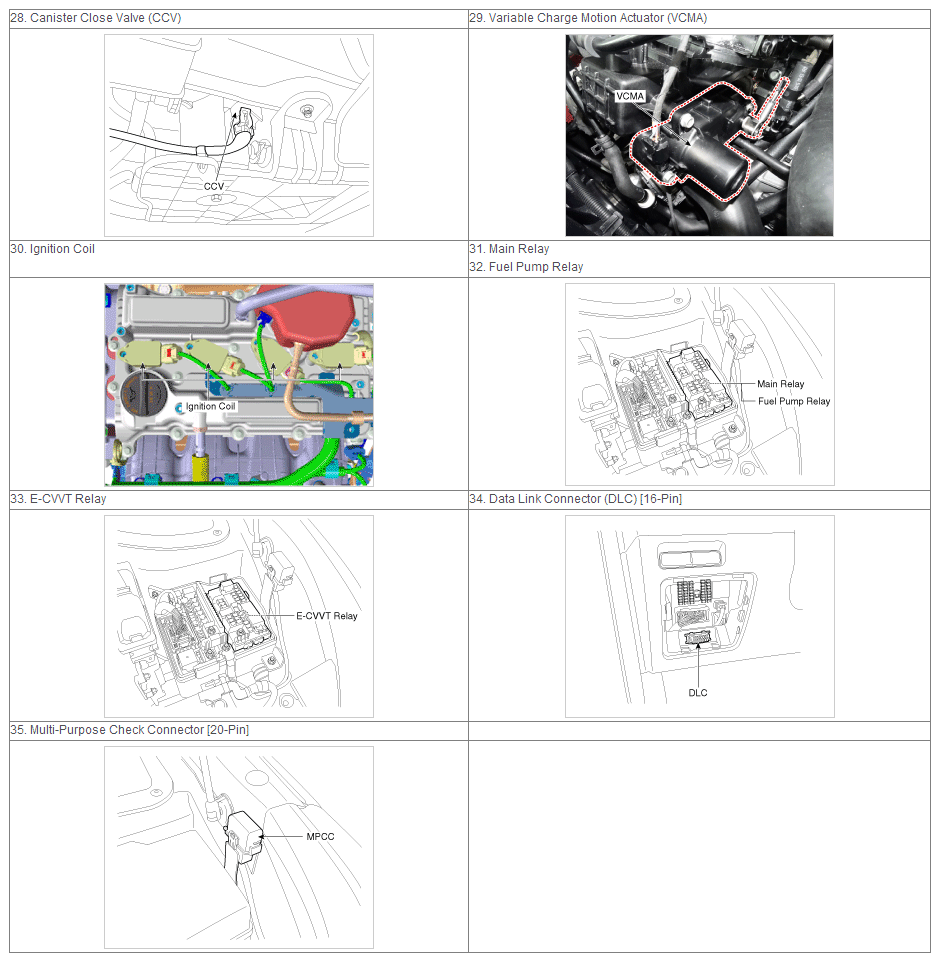

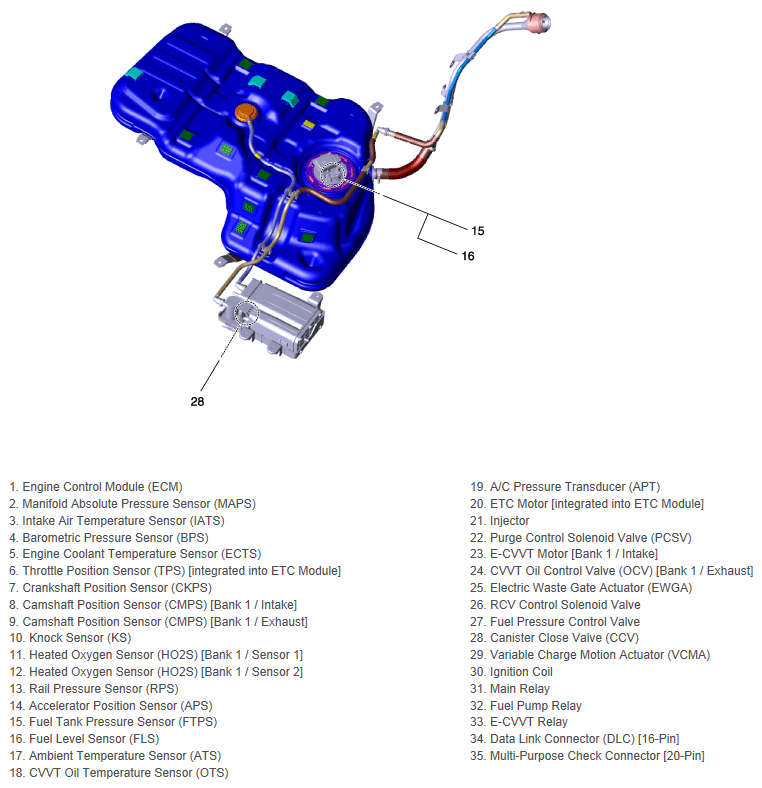

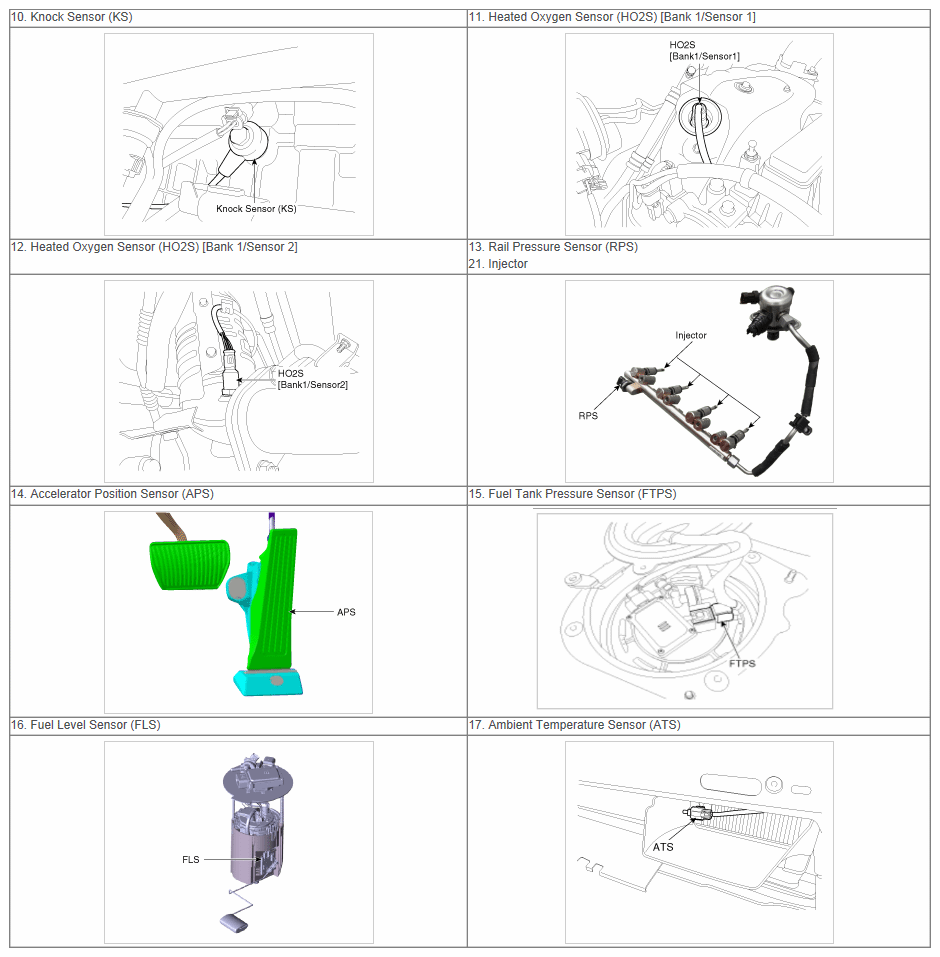

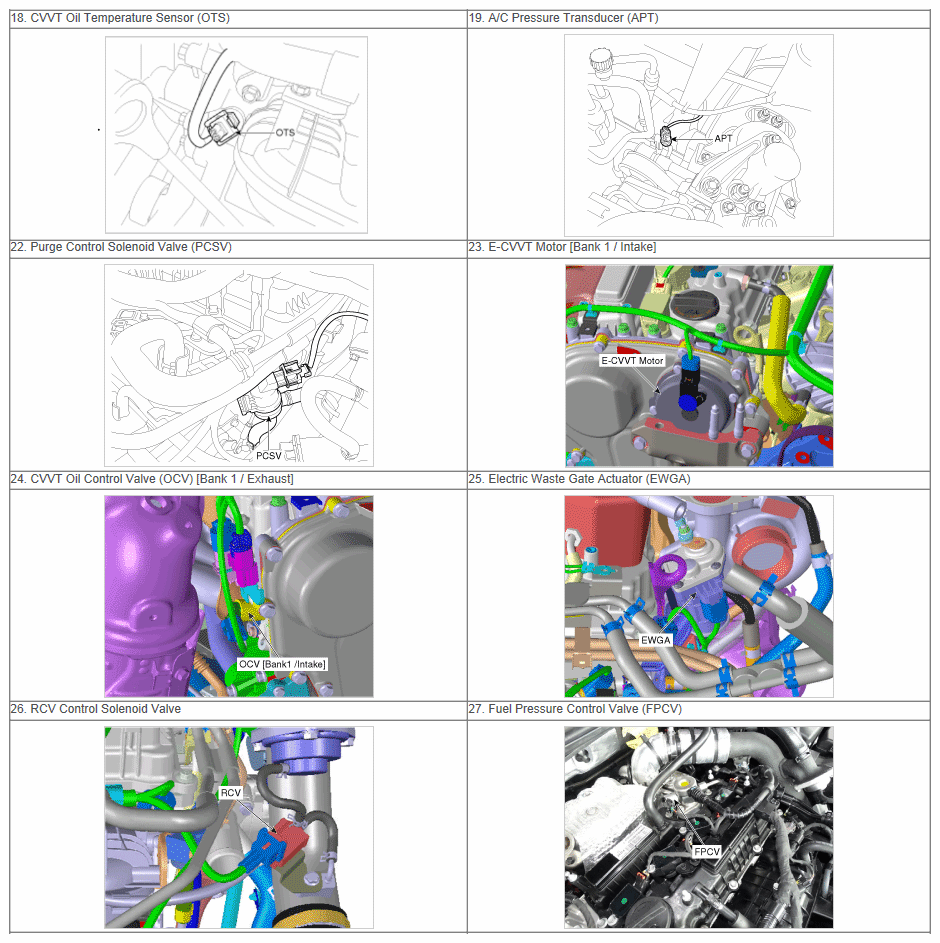

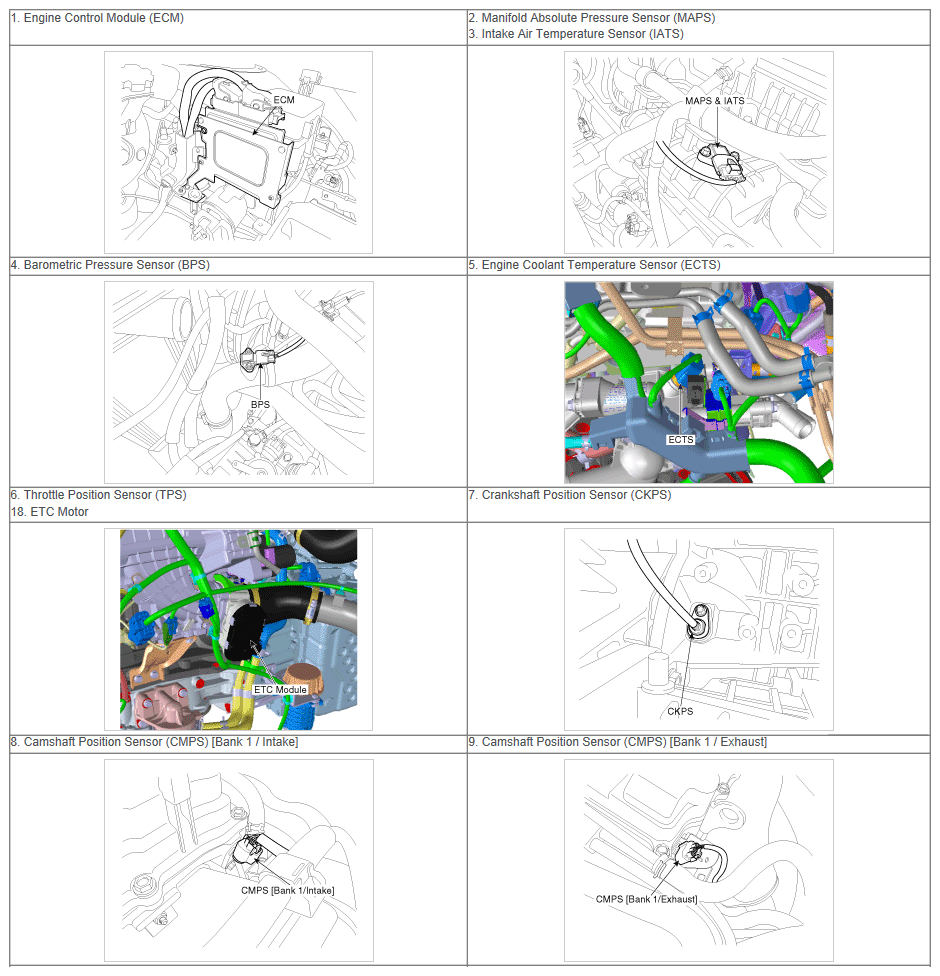

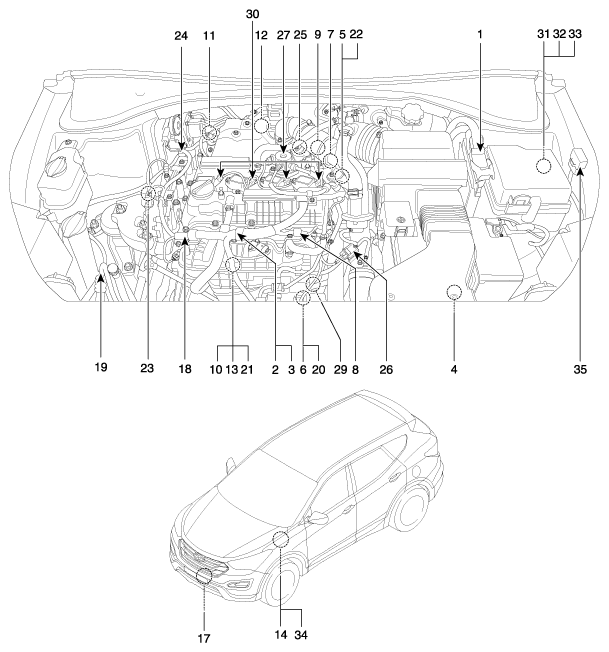

Fig 1: Engine Control System Components (1 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Engine Control System Components (2 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Engine Control System Components (3 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Engine Control System Components (4 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Engine Control System Components (5 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Engine Control System Components (6 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA
