Components And Components Location: Components

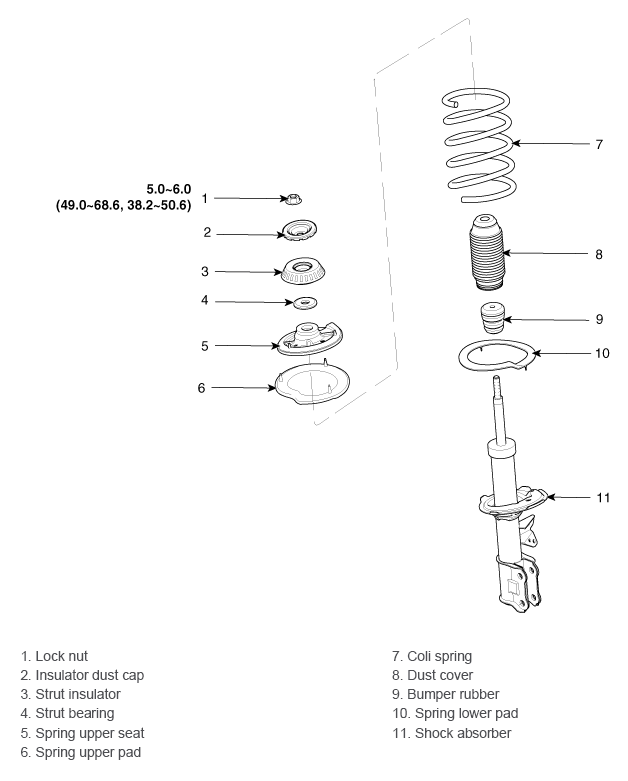

Fig 1: Front Strut Assembly Components Locations With Torque Specifications
G12017863Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
  • Tighten with specified torque at curb position of vehicle
  • Fix the strut rod end and tighten the nut
