Alarm Horn Control

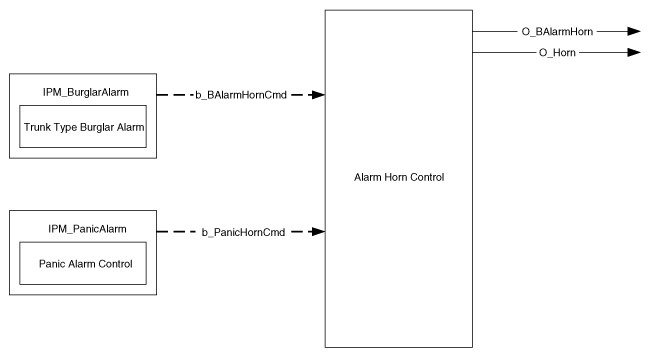

Fig 1: Alarm Horn Control Function Diagram

Courtesy of HYUNDAI MOTOR AMERICA

Function	Characteristics	Name
Function	Characteristics	Signal Label	Spec. Designation
Input	Internal	b_BAlarmHornCmd	ALARM Horn Operation Command
Input	Internal	b_PanicHornCmd	Panic Horn Command
Output	Logic	O_BAlarmHorn	Horn Output for NA Variant
Output	Logic	O_Horn	General Horn Output
