Rear Curtain Control by Switch

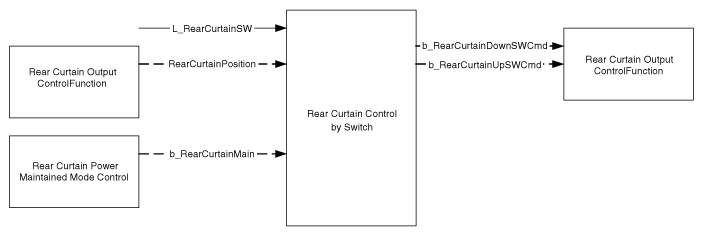

Fig 1: Rear Curtain Control By Switch Function Diagram

Courtesy of HYUNDAI MOTOR AMERICA

Function	Characteristics	Name
Function	Characteristics	Signal Label	Spec. Designation
Input	Logic	L_RearCurtainSW	Rear Curtain Auto Up/Down Switch
	Internal	b_RearCurtainMain	Rear Curtain Operation Mode
	Internal	RearCurtainPosition	Current Rear Curtain Position
Output	Internal	b_RearCurtainDownSWCmd	Rear Current Down Command by Switch Input
Output	Internal	b_RearCurtainUpSWCmd	Rear Current Up Command by Switch Input
