Components And Components Location: Components

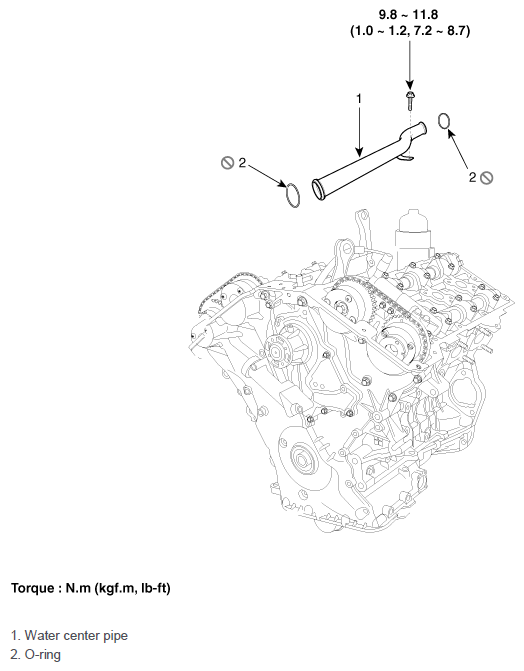

Fig 1: Water Pipe Components With Torque Specification
G12087009Courtesy of HYUNDAI MOTOR AMERICA
