Engine Control System Diagnosis (1 Of 3)
>>
DTC P0111: Intake Air Temperature Sensor 1 Circuit Range/Performance
>>
General Information
>>
Diagnostic Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Circuit Diagram

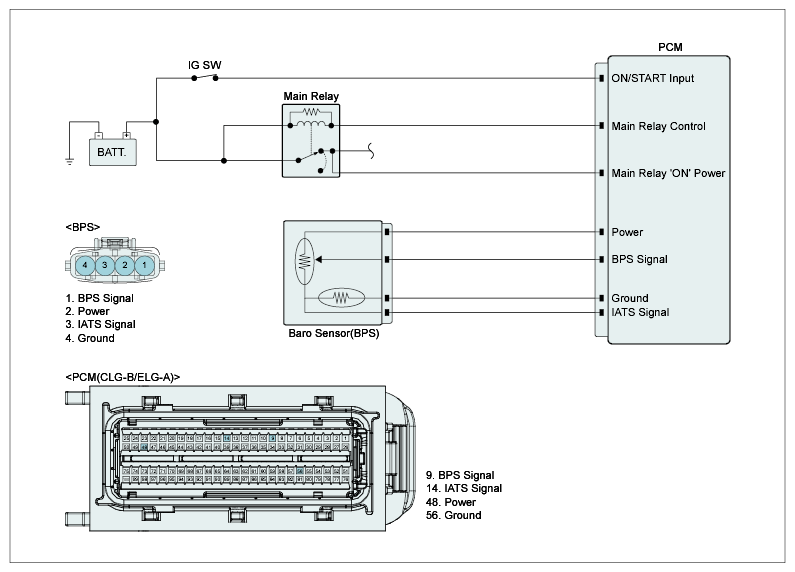

Fig 1: PCM Circuit
Courtesy of HYUNDAI MOTOR AMERICA
