Components And Components Location

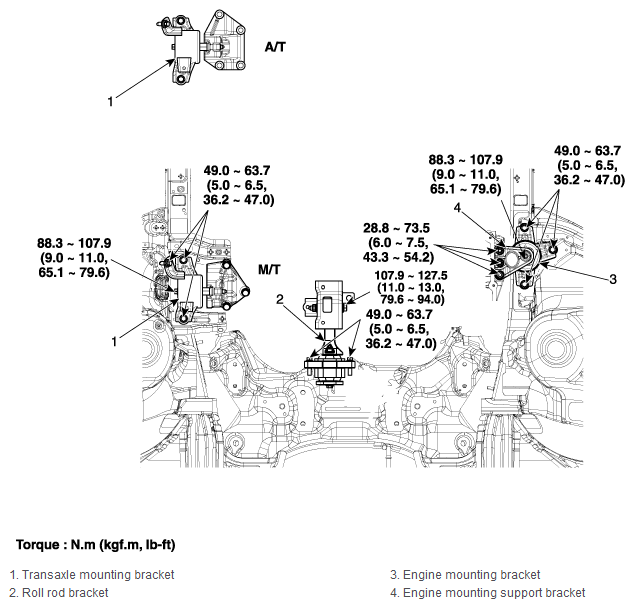

Fig 1: Engine Mounting Components With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
