Circuit Diagram: (M/T)

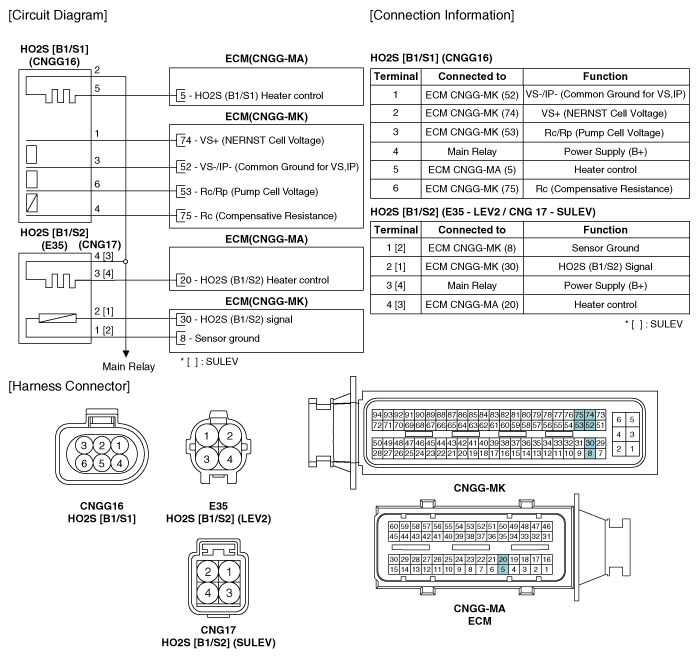

Fig 1: Heated Oxygen Sensor (HO2S) Circuit (M/T)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
