Components And Components Location
>>
Components
>>
[Driver Power Window Switch]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
[Driver Power Window Switch]

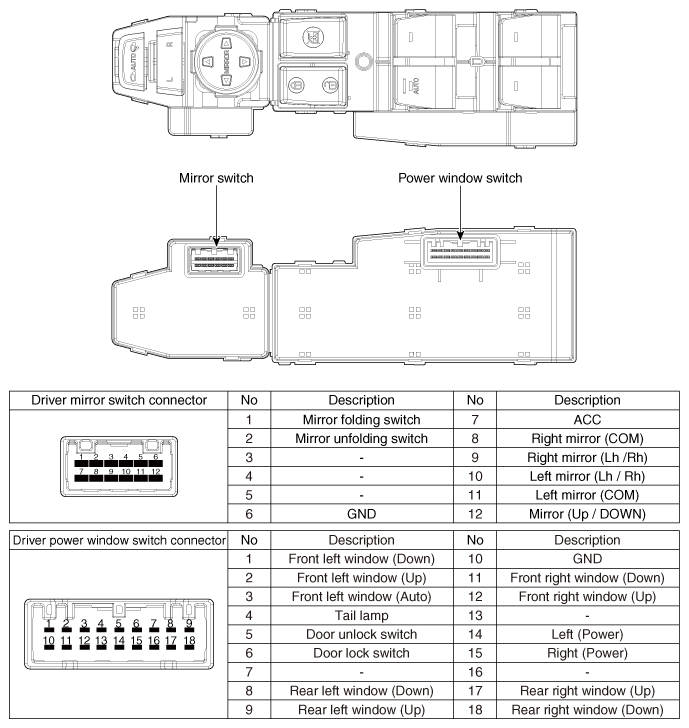

Fig 1: Driver Power Window Switch Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
