Components And Components Location: Components

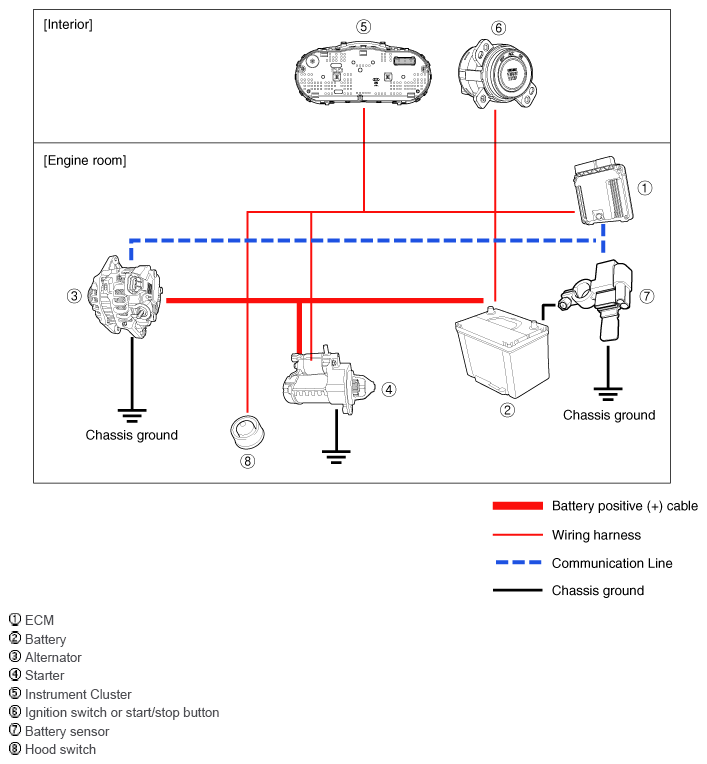

Fig 1: Charging System Components And Communication Diagram
G12024746Courtesy of HYUNDAI MOTOR AMERICA
