Repair Procedures: Removal

  1. Oil-pressure characteristics backup (TCM exchange)

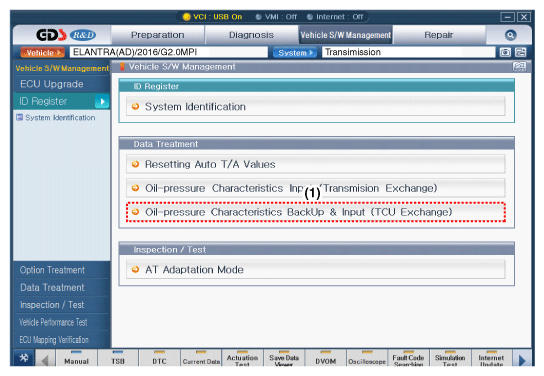

    Fig 1: Screen Display - Oil-Pressure Characteristics Backup (TCM Exchange; 1 Of 3)
    G12025201Courtesy of HYUNDAI MOTOR AMERICA

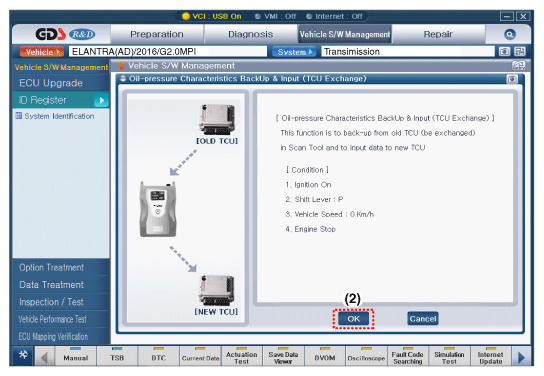

    Fig 2: Screen Display - Oil-Pressure Characteristics Backup (TCM Exchange; 2 Of 3)
    G12025202Courtesy of HYUNDAI MOTOR AMERICA

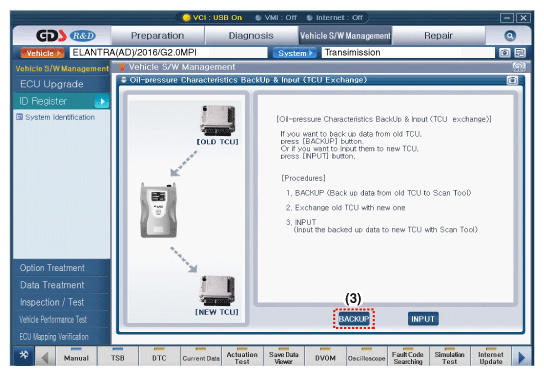

    Fig 3: Screen Display - Oil-Pressure Characteristics Backup (TCM Exchange; 3 Of 3)
    G12025203Courtesy of HYUNDAI MOTOR AMERICA
  2. Turn ignition switch OFF.
  3. Disconnect the negative (-) battery cable.
  4. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

  5. Disconnect the TCM connector (A).
    Fig 4: Disconnecting TCM Connector
    G12025204Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the fixing clip (A) of wiring.
  7. Remove the TCM (B).
Fig 5: Removing Wiring Fixing Clip And TCM
G12025205Courtesy of HYUNDAI MOTOR AMERICA
