Circuit Diagram

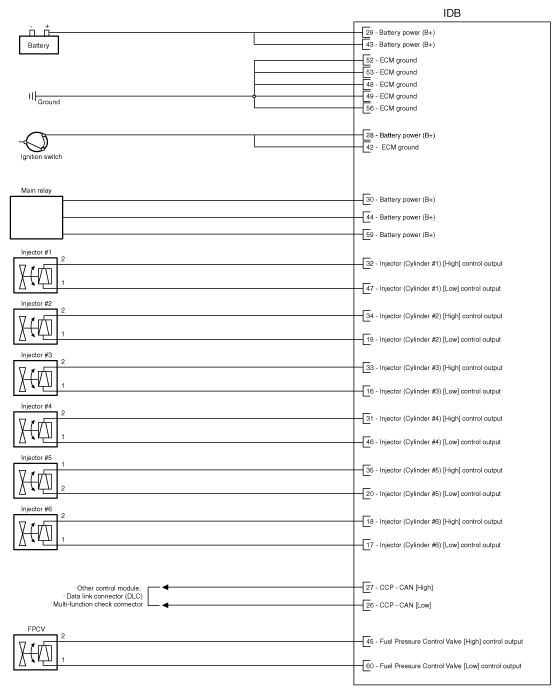

Fig 1: Injector Drive Box Diagram (1 Of 2)
G12033980Courtesy of HYUNDAI MOTOR AMERICA

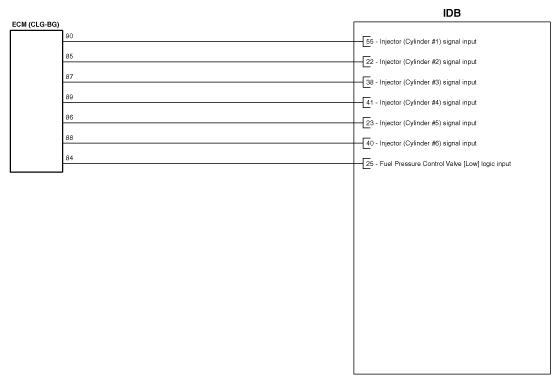

Fig 2: Injector Drive Box Diagram (2 Of 2)
G12033981Courtesy of HYUNDAI MOTOR AMERICA
