Repair Procedures: Removal
- Remove the floor console.
(Refer to "FLOOR CONSOLE ")
- Remove the air duct.
- Disconnect the sports mode connector (A).
- Disconnect the shift cable (A).

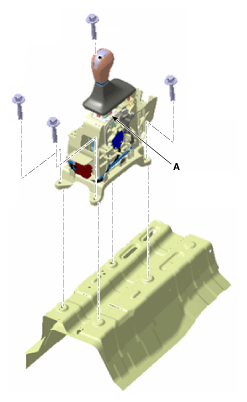

- Remove the shift lever assembly (A) by removing the bolts (C-4ea).
Tightening torque:
8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)
