Smart Key Code Saving

WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Driver Side Crash Pad Lower Panel Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart Key Code Saving".

Fig 2: Screen Display - ID Register
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart Key Teaching" menu, push "Enter" key, then the screen will be displayed in graphic.

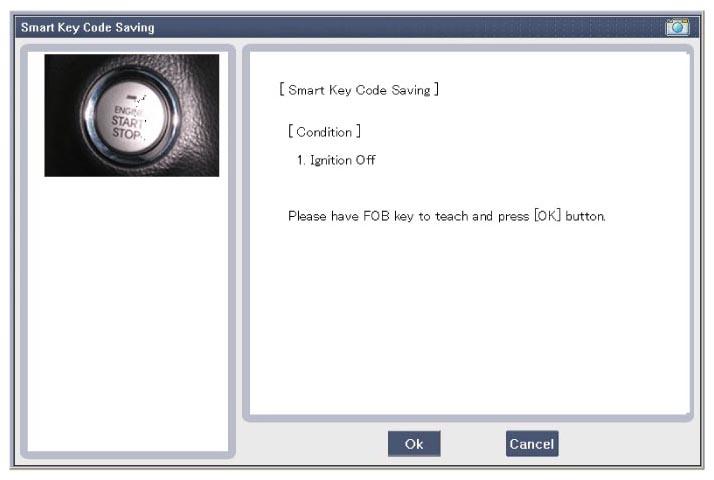

Fig 3: Screen Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR AMERICA
After pushing the SSB with the Teaching Key, press "OK" button.
Input the "Pin Code" for first key teaching.

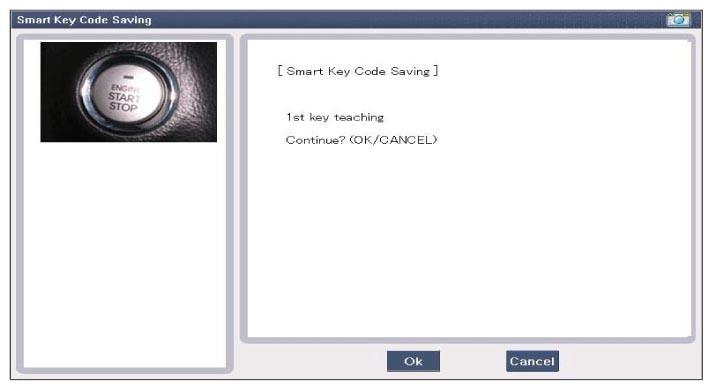

Fig 4: Screen Display - Status Neutral
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Screen Display - Status Neutral (OK / Cancel)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First Key Teaching Completed".

Fig 6: Screen Display - 1st Key Teaching
Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Screen Display - Smart Key Teaching Completed
Courtesy of HYUNDAI MOTOR AMERICA
Input the "Pin Code" for second key teaching.

Fig 8: Screen Display - 1st Key Teaching Completed
Courtesy of HYUNDAI MOTOR AMERICA

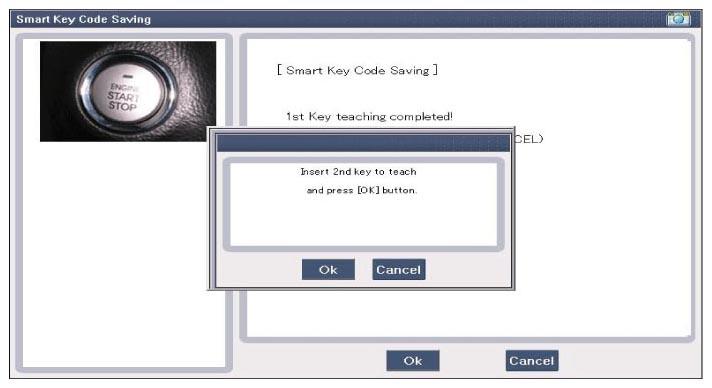

Fig 9: Screen Display - Insert 2nd Key To Teach
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second Key Teaching Completed".

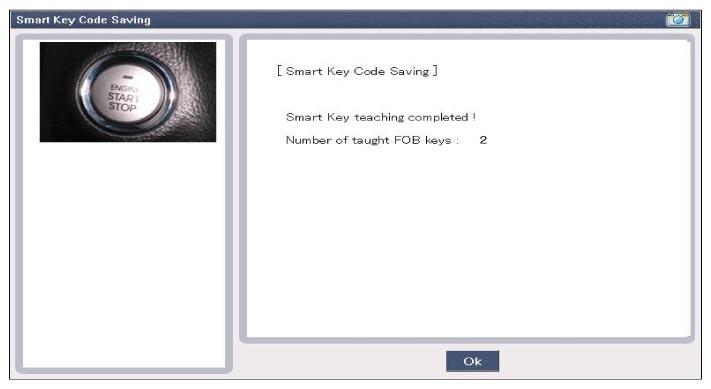

Fig 10: Screen Display - Smart Key Teaching Completed
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will be displayed in graphic when key teaching process is completed.
