Hyundai
>>
2017
>>
Tucson SE, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System - 2.0L
>>
Shift Lever
>>
Schematic Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagrams

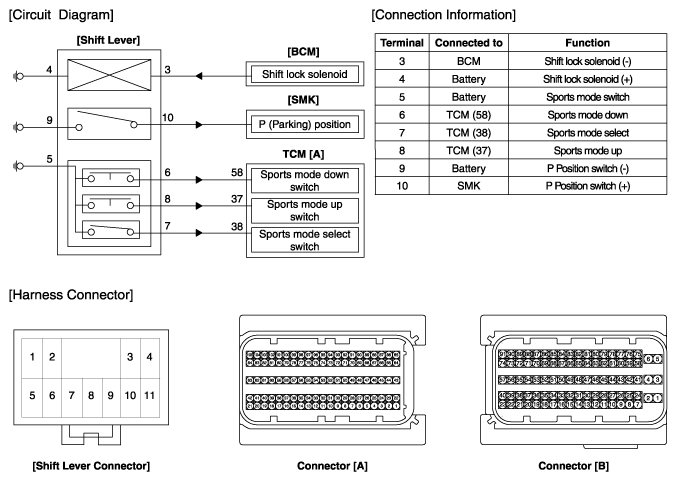

Fig 1: Shift Lever Schematic, Connector Terminals And Description Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
