Driver Power Window Switch

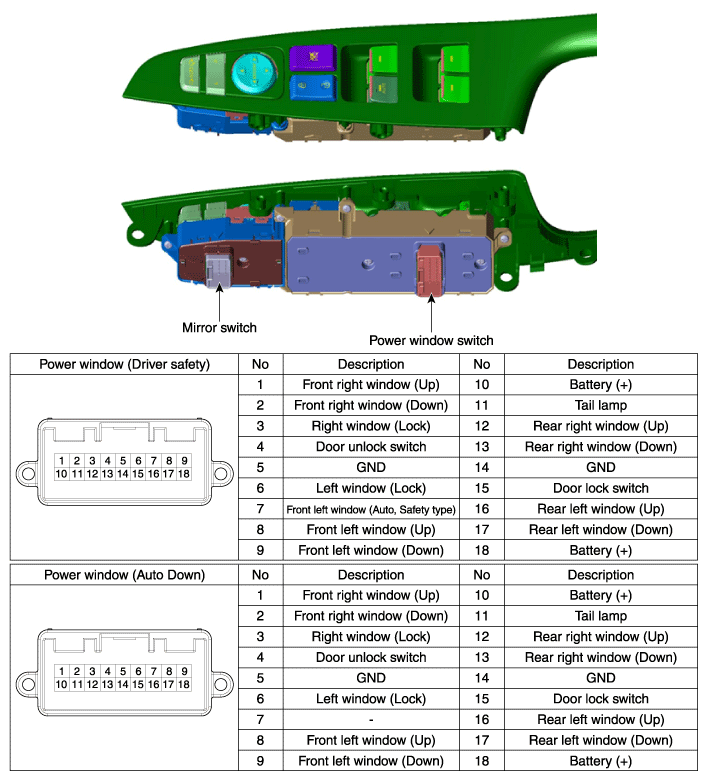

Fig 1: Driver Power Window Switch Connectors, Terminals And Description Charts
G12042965Courtesy of HYUNDAI MOTOR AMERICA
