Driver Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  3. Disconnect the power mirror switch connector from the door trim.
    Fig 1: Disconnecting Power Mirror Switch Connector From Door Trim With Terminals
    G12042974Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals in each switch position as shown in (Fig 2), (Fig 3) and (Fig 4).

    [Power Window Switch Inspection]

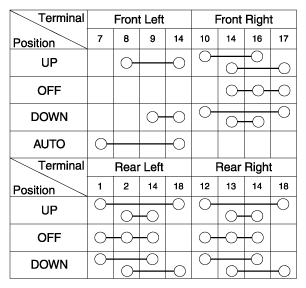

    Fig 2: Power Window Switch Connector Terminals Continuity Chart
    G12042975Courtesy of HYUNDAI MOTOR AMERICA

    [Power Door Lock Switch Inspection]

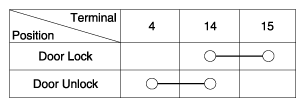

    Fig 3: Power Door Lock Switch Connector Terminals Continuity Chart
    G12042976Courtesy of HYUNDAI MOTOR AMERICA

    [Power Window Lock Switch Inspection]

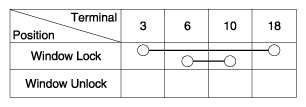

    Fig 4: Power Window Lock Switch Connector Terminals Continuity Chart
    G12042977Courtesy of HYUNDAI MOTOR AMERICA
