Dual Clutch Transmission Control System - 1.6L
>>
Shift Lever
>>
Components And Components Location
>>
Components (1)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components (1)

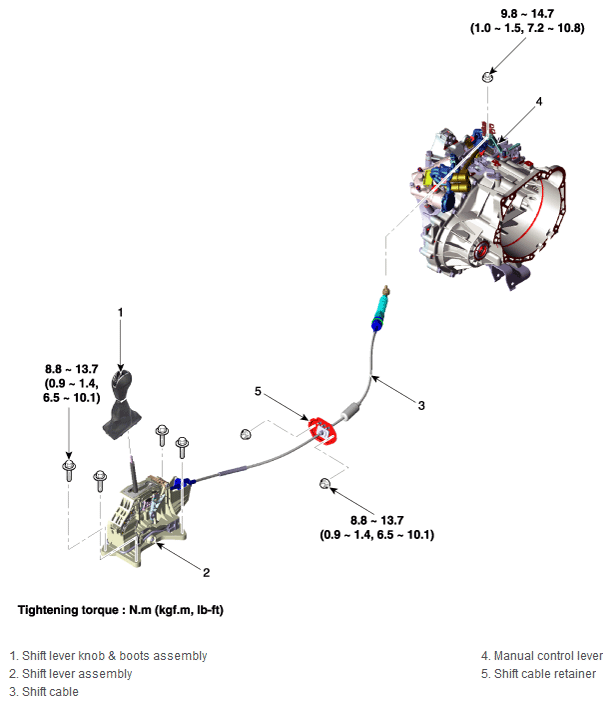

Fig 1: Shift Lever Components With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
