Component Location

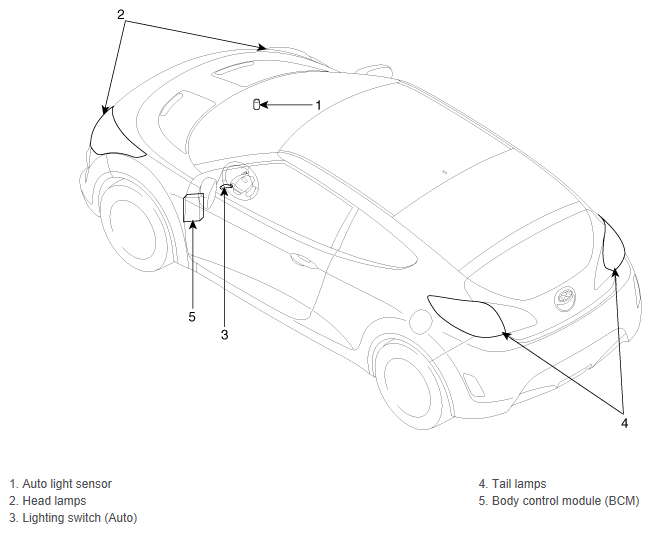

Fig 1: Locating Auto Lighting Control System Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
