Projected Dimensions

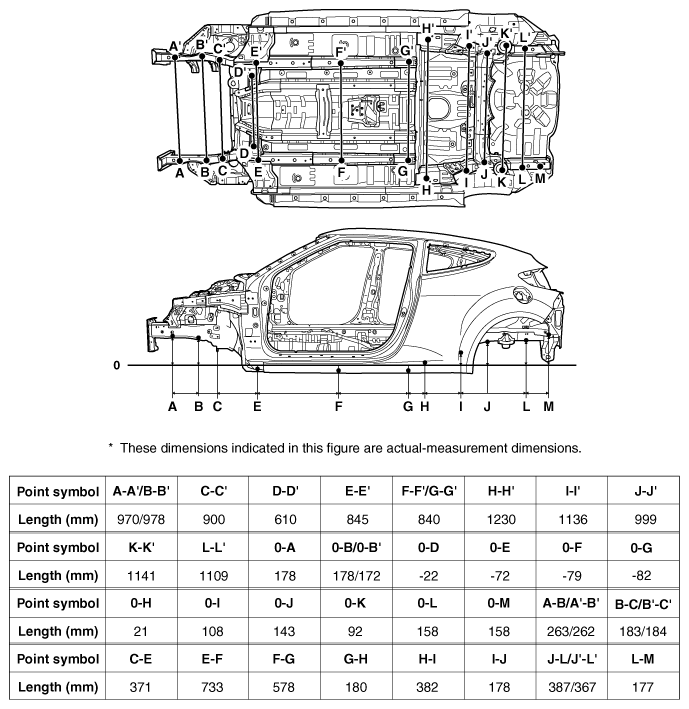

Fig 1: Locating Under Body Projected Dimensions (1 Of 3)
G12125741Courtesy of HYUNDAI MOTOR AMERICA

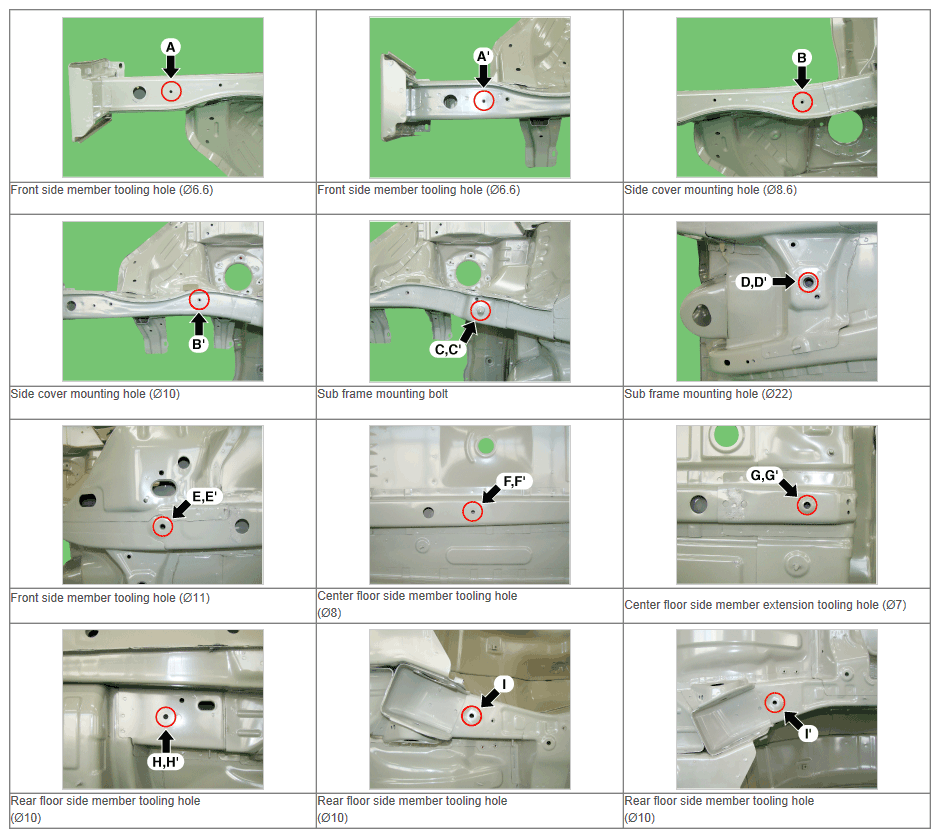

Fig 2: Locating Under Body Projected Dimensions (2 Of 3)
G12125742Courtesy of HYUNDAI MOTOR AMERICA

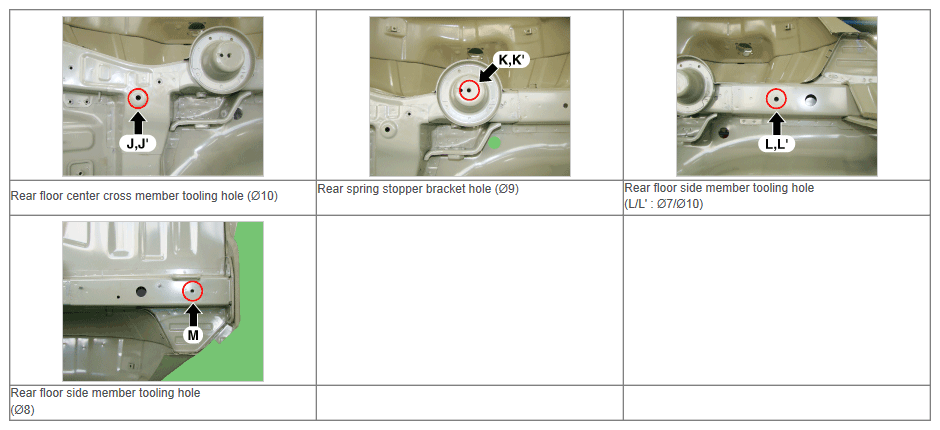

Fig 3: Locating Under Body Projected Dimensions (3 Of 3)
G12125743Courtesy of HYUNDAI MOTOR AMERICA
