Connector Pin Information

INSTRUMENT CLUSTER PIN DESCRIPTION CHART

Pin No	Description	Pin No	Description
1	Rheostat up button	21	Rheostat down button
2	Airbag Supply	22	Battery (+)
3	Battery charge	23	Fuel input
4	Rear fog	24	AT P OUT
5	Parking brake	25	AT R OUT
6	-	26	AT N OUT
7	Active ECO input	27	AT D OUT
8	Immobilizer	28	-
9	Alt	29	B CAN Low
10	OAT input	30	B CAN High
11	Illumination (+)	31	-
12	Flex steering input	32	C CAN LOW
13	Detent Out	33	C CAN HIGH
14	SGND 2	34	Fuel (-)
15	Low Washer	35	SGND 1
16	4P Out	36	Heating steer input
17	Front fog	37	Ignition 1
18	Oil Pressure	38	DC DC Converter
19	Trip (+)	39	-
20	Trip (-)	40	Rheostat Out

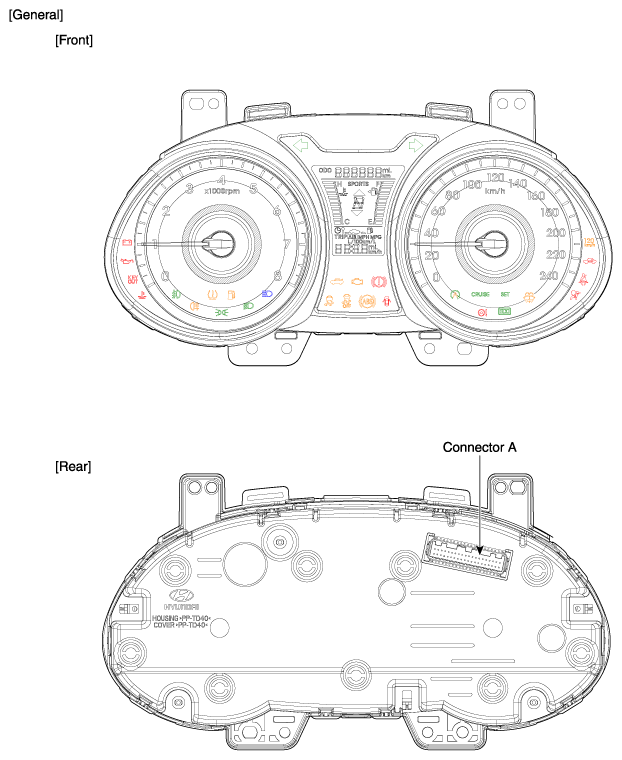

Fig 1: Instrument Cluster (General)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Instrument Cluster Connector Terminals (General)

Courtesy of HYUNDAI MOTOR AMERICA

INSTRUMENT CLUSTER PIN DESCRIPTION CHART

Pin No	Description	Pin No	Description
1	Rheostat up button	21	Rheostat down button
2	Airbag Supply	22	Battery (+)
3	Battery charge	23	Fuel input
4	Rear fog	24	AT P OUT
5	Parking brake	25	AT R OUT
6	-	26	AT N OUT
7	Active ECO input	27	AT D OUT
8	Immobilizer	28	-
9	Alt	29	B CAN Low
10	OAT input	30	B CAN High
11	Illumination (+)	31	-
12	-	32	C CAN LOW
13	Detent Out	33	C CAN HIGH
14	SGND 2	34	Fuel (-)
15	Low Washer	35	SGND 1
16	4P Out	36	-
17	Front fog	37	Ignition 1
18	Oil Pressure	38	DC DC Converter
19	Trip (+)	39	-
20	Trip (-)	40	Rheostat Out
