Signal Waveform & Data

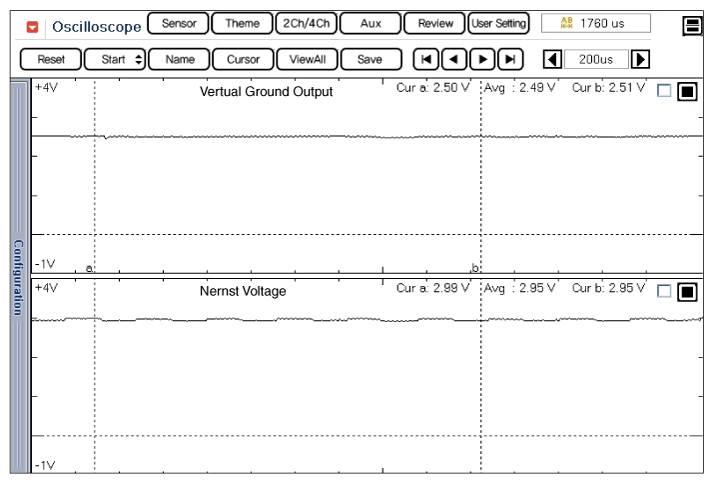

Fig 1: Signal Waveform Of Sensor Vertual Ground Output At IG Key ON & Engine Running (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

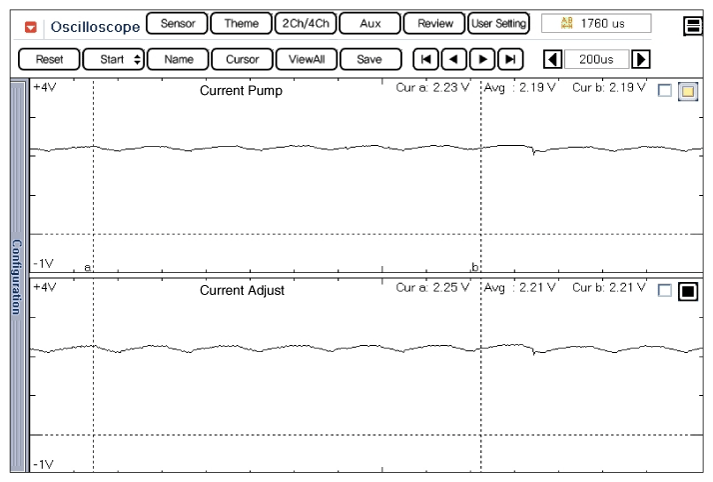

Fig 2: Signal Waveform Of Sensor Current Pump At IG Key ON & Engine Running (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

Waveform of sensor Current Pump at IG KEY "ON" and Engine running. It fluctuates between 2V and 3V periodically.

Waveform of sensor Vertual Ground Output at IG KEY "ON" and Engine running. 2.5V is displayed.

Waveform of sensor Current Adjust at IG KEY "ON" and Engine running. It fluctuates between 2V and 3V periodically. Waveform of sensor Nearest Voltage at IG KEY "ON" and Engine running. 2.9V is displayed.
