Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.

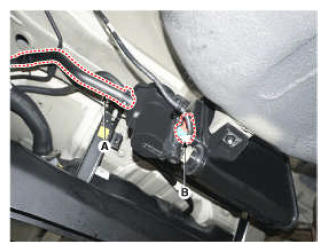

  3. Remove the ventilation hose (A).
  4. Disconnect the canister close valve connector (B).
    G12598585Courtesy of HYUNDAI MOTOR AMERICA

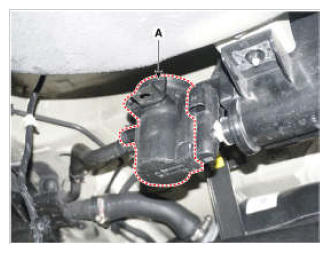

  5. Remove the fuel tank air filter (A) from the canister close valve.
    G12598586Courtesy of HYUNDAI MOTOR AMERICA

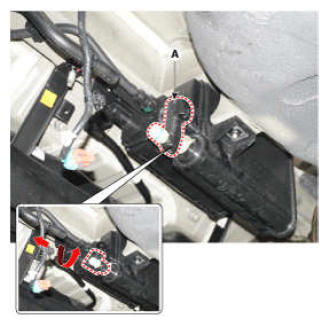

  6. Remove the canister close valve (A) from the canister assembly.
G12598587Courtesy of HYUNDAI MOTOR AMERICA
