Transaxle Oil Temperature Sensor: Specifications: Specifications
* Type: Negative Thermal Coefficient Type

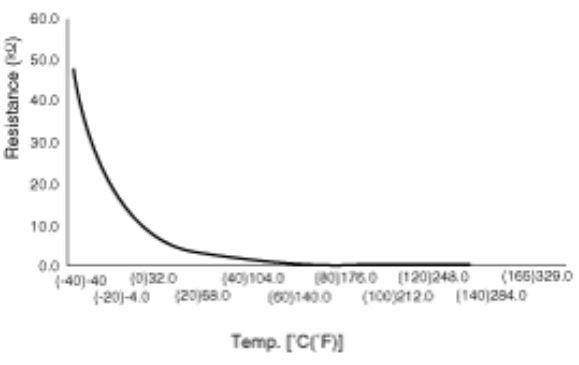

TRANSAXLE OIL TEMPERATURE SENSOR SPECIFICATIONS
| Temp. [(°C)°F] | Resistance (Ω) | Min | Max |
|---|---|---|---|
| (-40) -40 | 48153 | 45301 | 51006 |
| (-20) -4.0 | 15614 | 14785 | 16443 |
| (0) 32.0 | 5887 | 5605 | 6168 |
| (20) 68.0 | 2510.6 | 2401.9 | 2619.3 |
| (40) 104.0 | 1199.6 | 1152.4 | 1246.7 |
| (60) 140.0 | 612.3 | 590.3 | 634.2 |
| (80) 176.0 | 329.5 | 318.7 | 340.3 |
| (100) 212.0 | 186 | 180.4 | 191.6 |
| (120) 248.0 | 109.7 | 106.1 | 113.2 |
| (140) 284.0 | 67.16 | 64.82 | 69.5 |
| (150) 302.0 | 53.24 | 51.32 | 55.16 |
