Components Location

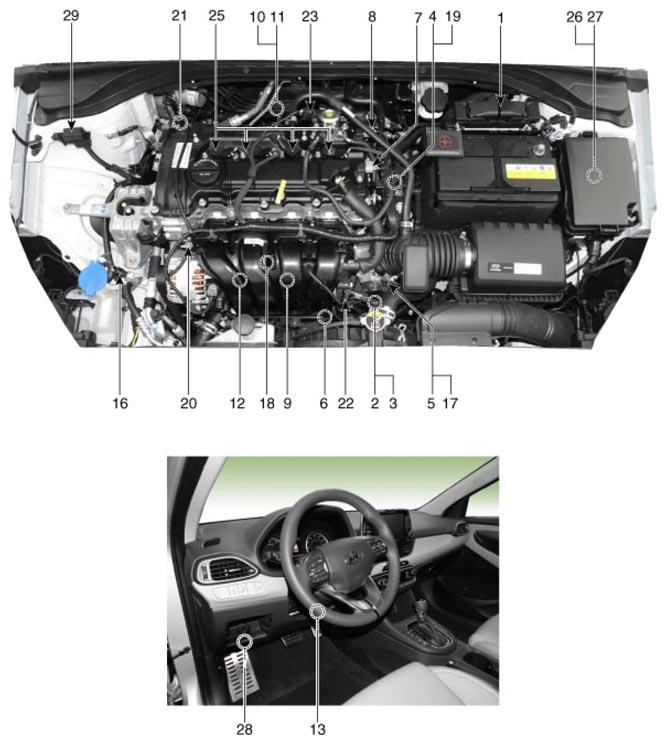

G12646434Courtesy of HYUNDAI MOTOR AMERICA

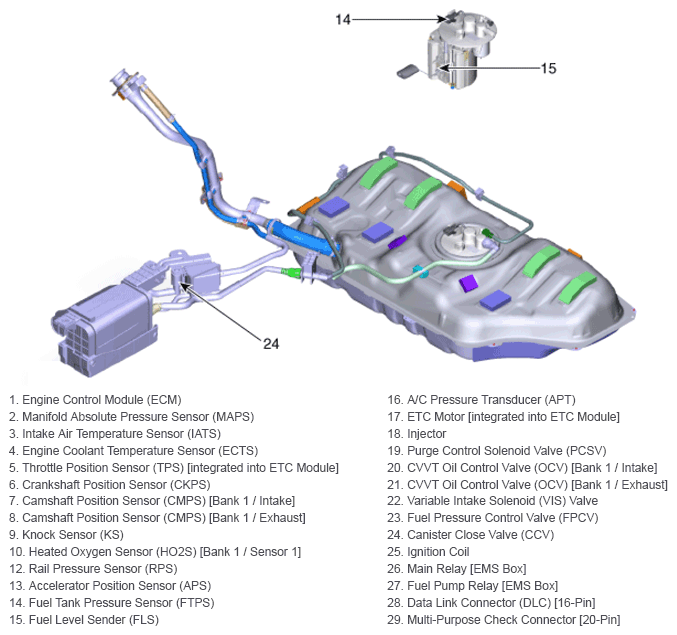

G12646435Courtesy of HYUNDAI MOTOR AMERICA

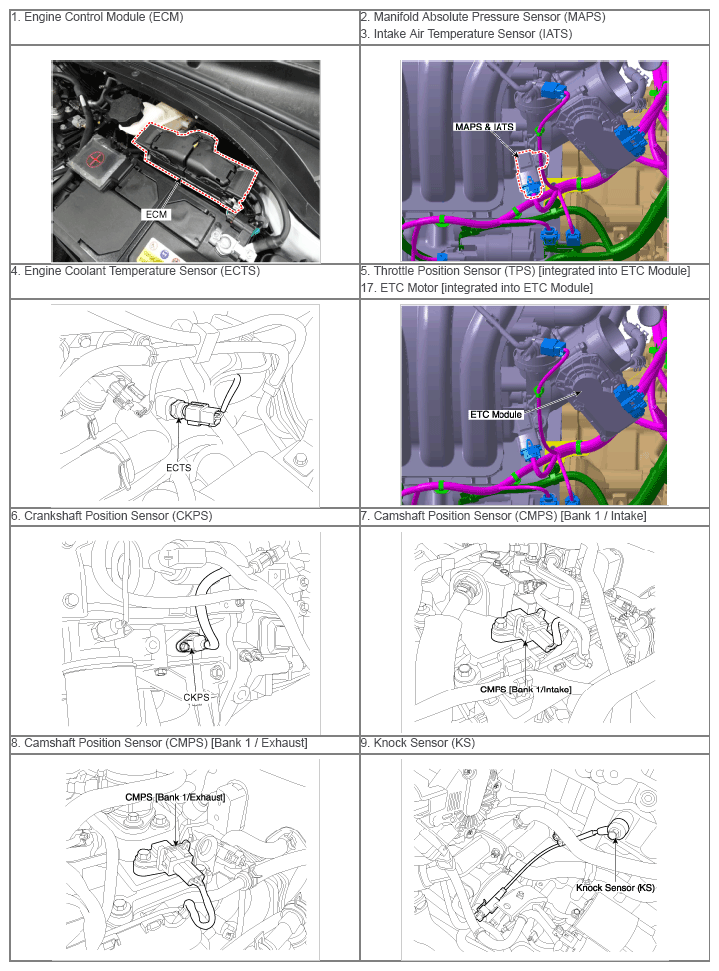

G12646436Courtesy of HYUNDAI MOTOR AMERICA

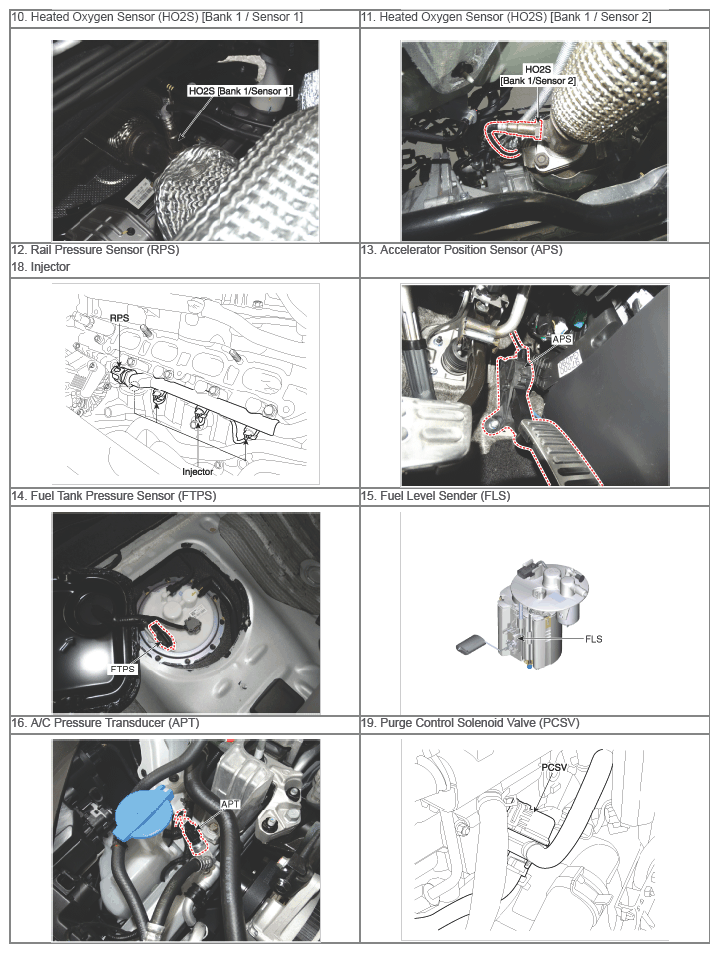

G12646437Courtesy of HYUNDAI MOTOR AMERICA

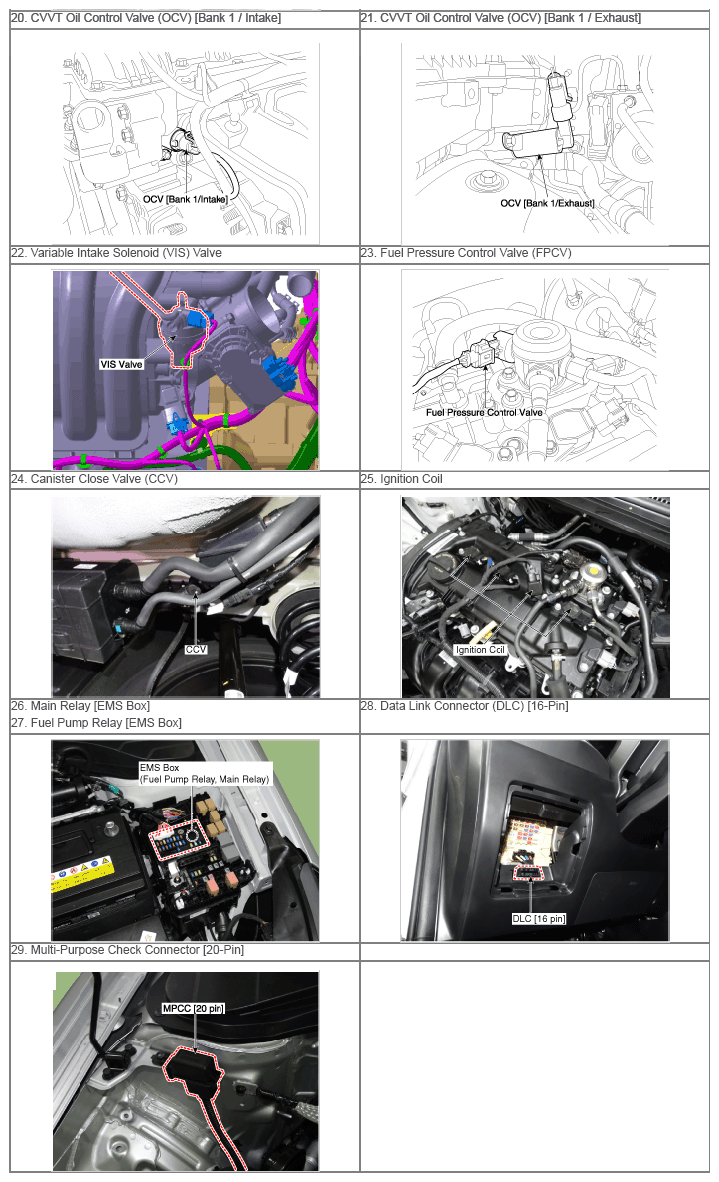

G12646438Courtesy of HYUNDAI MOTOR AMERICA
