Components Location

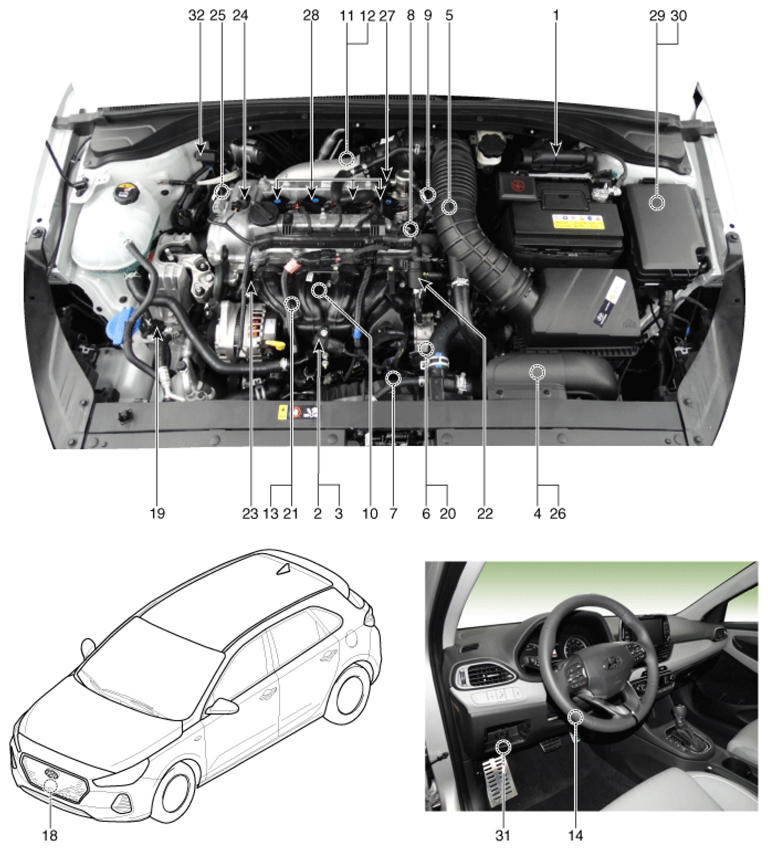

G12643352Courtesy of HYUNDAI MOTOR AMERICA

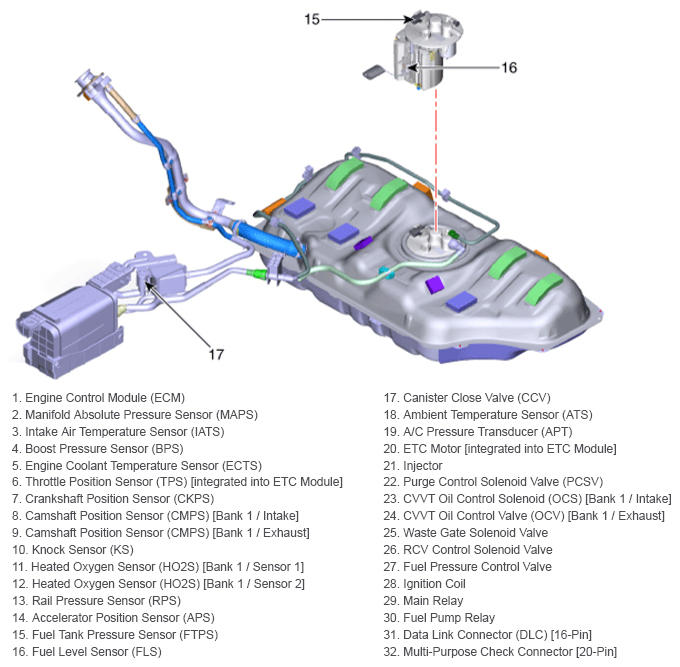

G12643353Courtesy of HYUNDAI MOTOR AMERICA

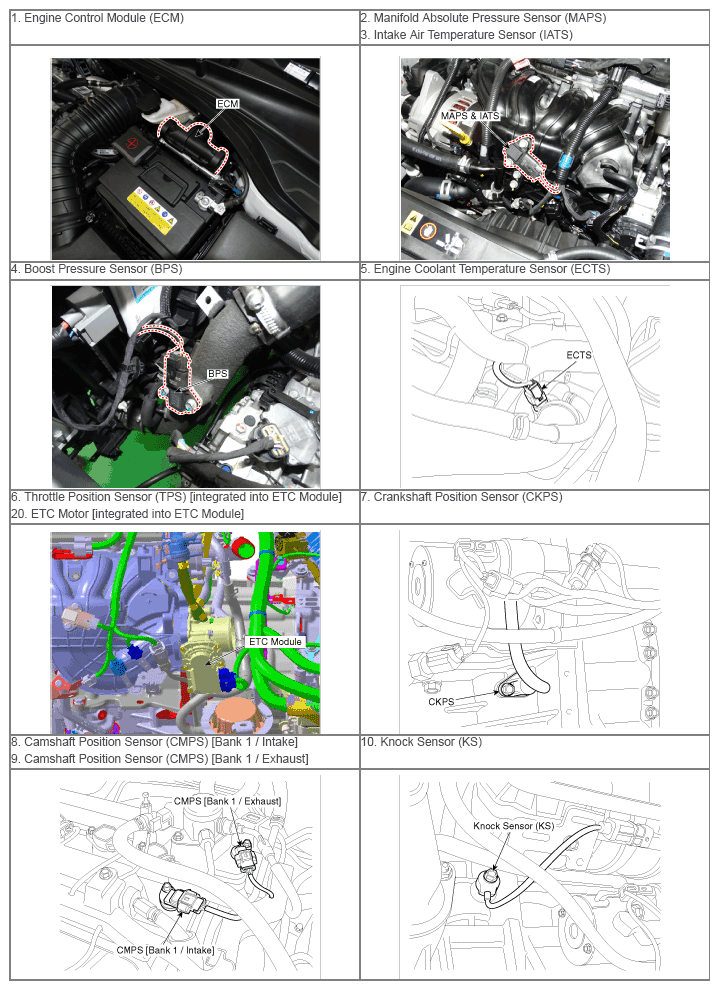

G12643354Courtesy of HYUNDAI MOTOR AMERICA

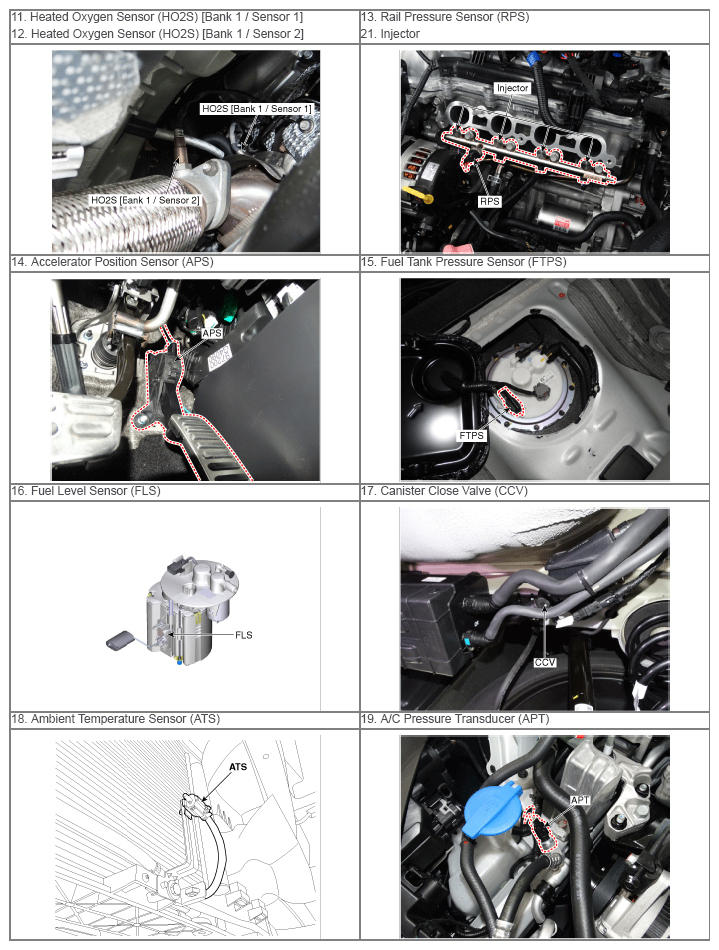

G12643355Courtesy of HYUNDAI MOTOR AMERICA

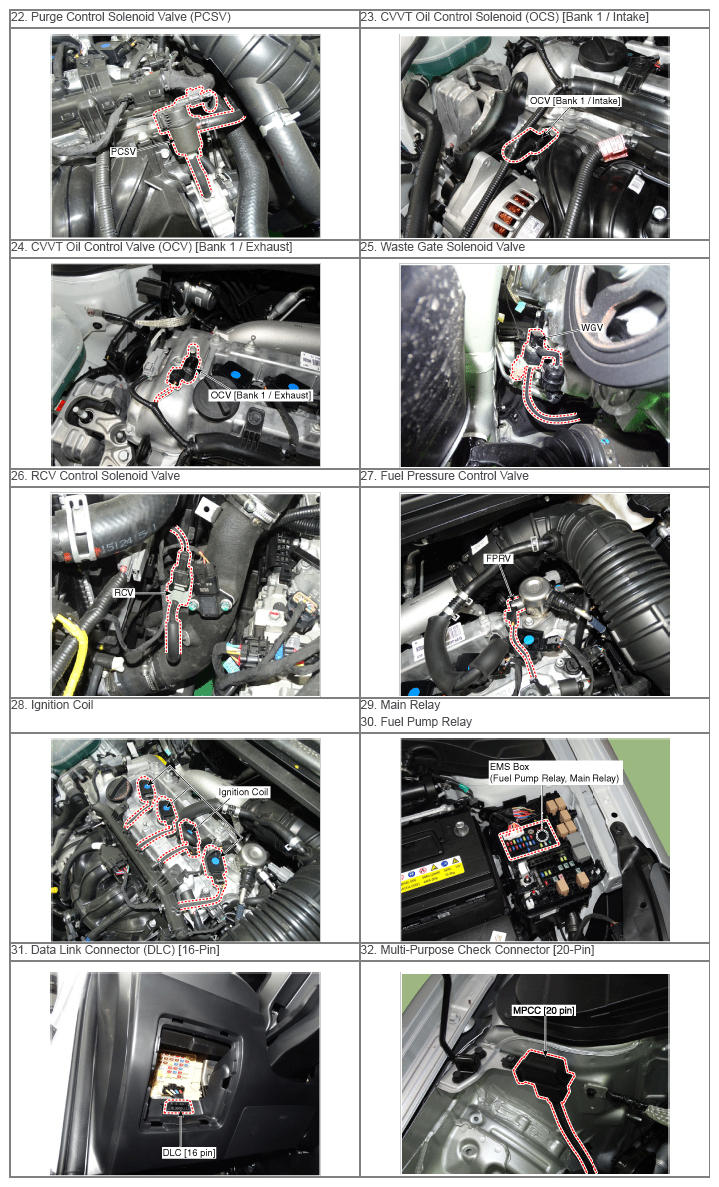

G12643356Courtesy of HYUNDAI MOTOR AMERICA
