Repair Procedures: Inspection

  1. Check the temperature sensor resistance.

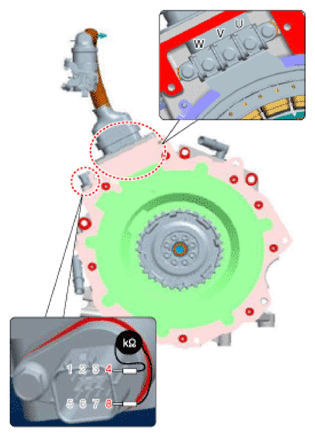

    [Hybrid drive motor]

    Measuring equipment: Multimeter

    Category Inspection area Inspection criteria Remarks
    Resistance (Temperature sensor) Pin 4 - 8 8kΩ (30°C/86°F) - 20kΩ (10°C/50°F) 10 - 30°C/50 - 86°F
    G12759059Courtesy of HYUNDAI MOTOR AMERICA

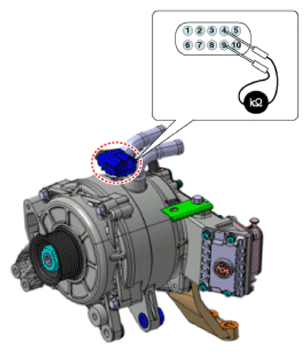

    [Hybrid starter generator (HSG)]

    Measuring equipment: Multimeter

    Category Inspection area Inspection criteria Remarks
    Resistance (Temperature sensor) Pin 4 - 9 10.92 - 13.44 kΩ Based on ambient temperature (20°C)
    G12759060Courtesy of HYUNDAI MOTOR AMERICA
  2. If you need to replace the temperature sensor, replace the HSG assembly.

    (Refer to Hybrid Motor Assembly - "HYBRID STARTER GENERATOR ".)
