[Bank 1/Exhaust]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the air cleaner assembly

    (Refer to "AIR CLEANER ")

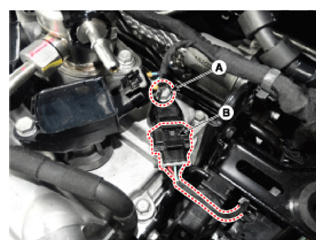

  3. Disconnect the camshaft position sensor connector (A).
  4. Remove the installation bolt (B), and then remove the sensor.
    G12727149Courtesy of HYUNDAI MOTOR AMERICA
