Components And Components Location: Components

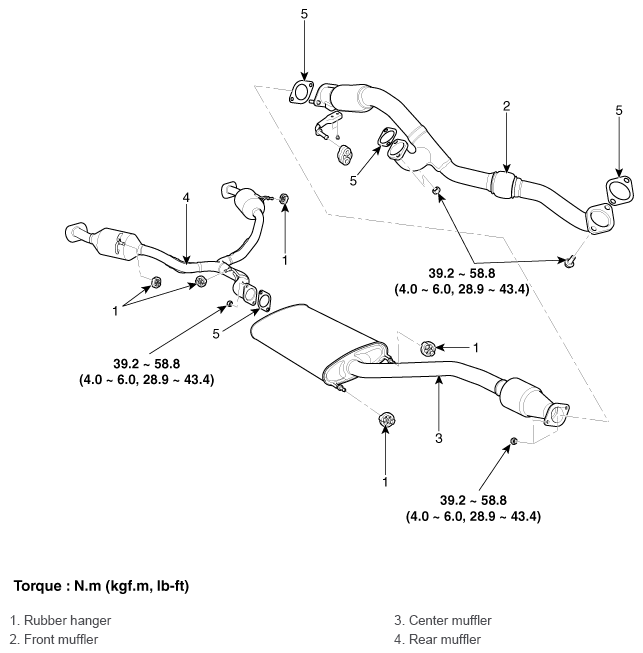

Fig 1: Muffler And Catalytic Converter Components With Torque Specifications
G12033763Courtesy of HYUNDAI MOTOR AMERICA
