Description And Operation: Operation

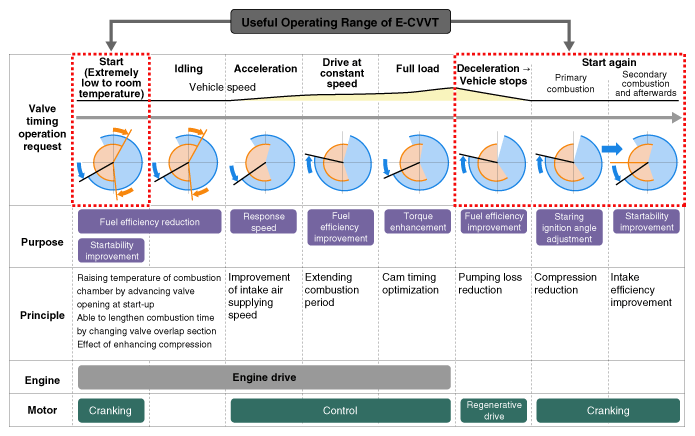

Fig 1: E-CVVT System Operation Chart

G12055479

Courtesy of HYUNDAI MOTOR AMERICA
