Component Location

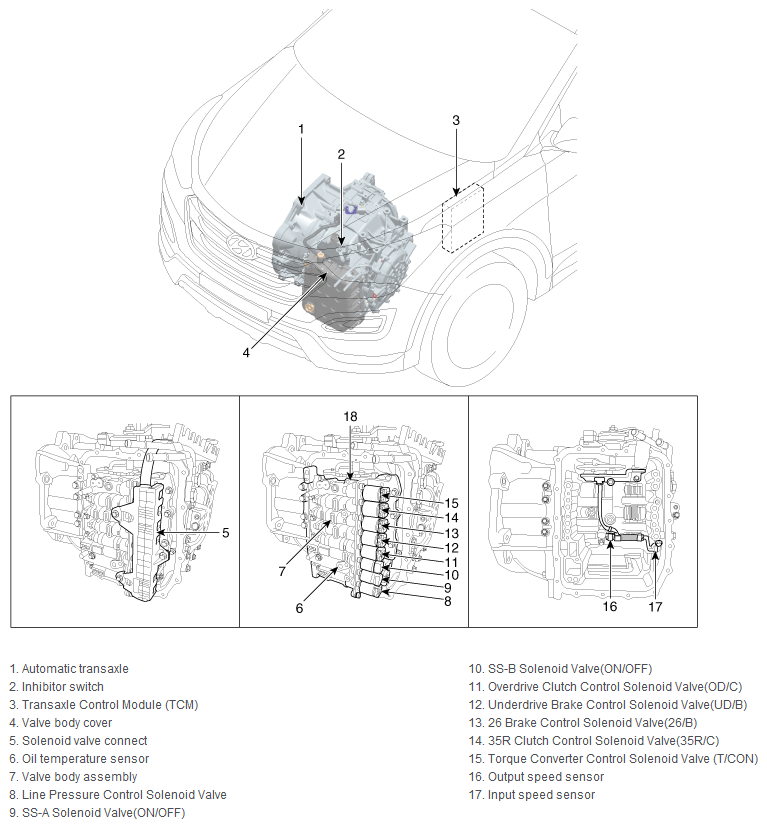

Fig 1: Locating Automatic Transaxle System Components (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

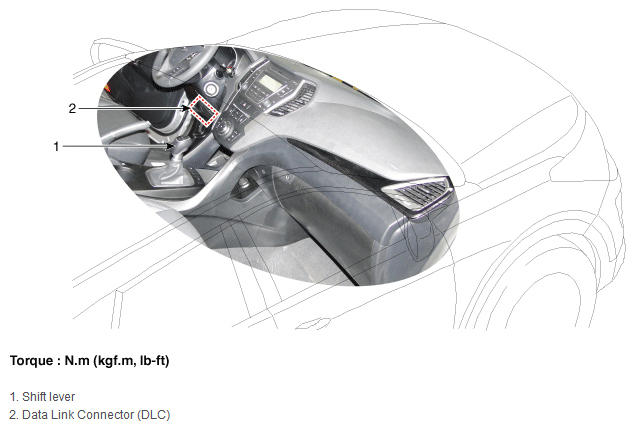

Fig 2: Locating Automatic Transaxle System Components With Torque Specification (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
