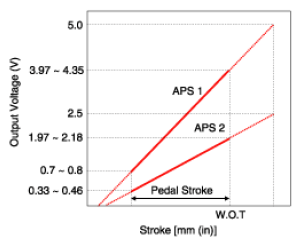

Accelerator Position Sensor (APS): Specifications: Specification
| Accelerator Position |
Output Voltage (V) |
| APS1 |
APS2 |
| C.T |
0.7 ~ 0.8 |
0.33 ~ 0.46 |
| W.O.T |
3.97 ~ 4.35 |
1.97 ~ 2.18 |
 Courtesy of HYUNDAI MOTOR AMERICA
|
